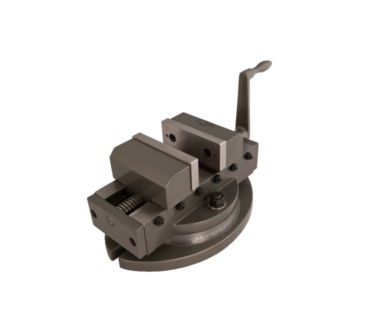

WILTON 4" Super Precision Self Centering Vise 11713
Wilton's Super Precision Self Centering vise automatically adjusts work piece to center. These high precision vises are constructed of close grained, high tensile seasoned alloy castings.
•Very convenient for use with drilling and milling machines where quick centering is required
•Allows for accurate centering of jobs automatically
•Special design allows accurate setting up of jobs with only a single machine setting
•Vise bodies are constructed of close grained, high tensile, seasoned alloy castings
•Jaws ground and hardened to 55 ± 3 HRC
Technical Specifications
Overall Dimension (LxWxH) 11.4 x 7.9 x 9.4
Jaw Opening 4
Jaw Depth 1-1/2
Overall Height 4.842
Model Number SCV/SP-100
Jaw Width 4
Size 4
Weight 33.7 lbs
Type Self Centering Vise
With Swivel Base
Vise Height 9.4
Vise Length 11.4
Vise Body Width 7.9
