Product Description
A4 VDI Live Toolholder Axial Drilling Milling Head IT Duplomatic 30mm SH ER25 DA30IT25
AJAX INDUSTRIES, Your one stop SHOP for VDI LIVE TOOLING. Call one of our VDI Tooling Technicians Today. We Welcome the Opportunity to Quote and Help in selection of the proper VDI Static and Rotating Driven Live Tools to fit your CNC Turning, Milling, Drilling and Boring applications. Sauter, Duplomatic, Brauffaldi, Japanese, BMS, HAAS Tools and More for Mazak, Okuma, Haas, Daewoo, Mori Sieki, Doosan, Nakamura, Hwacheon ect... Put WORKHOLDING to work for your SHOP!!!
Ajaxtoolsupply.com GUARANTEED LOWEST PRICE!Ajax Industries Sales and Service 1 (800) 543-5998
AJAX INDUSTRIES, Your one stop SHOP for VDI LIVE TOOLING. Call one of our VDI Tooling Technicians Today. We Welcome the Opportunity to Quote and Help in selection of the proper VDI Static and Rotating Driven Live Tools to fit your CNC Turning, Milling, Drilling and Boring applications. Sauter, Duplomatic, Brauffaldi, Japanese, BMS, HAAS Tools and More for Mazak, Okuma, Haas, Daewoo, Mori Sieki, Doosan, Nakamura, Hwacheon ect... Put WORKHOLDING to work for your SHOP!!!
Description
A4: Axial Drilling & Milling Head with Collet Chuck
A4 Axial Drilling & Milling Head w/ Collet Chuck
Spur Coupling - IT (Duplomatic Type)
Model# with "K": Internal Coolant (IC)
Main Features
To be used for collet DIN6499
External coolant supply
Collet is not included
For endmilling, drilling, reaming
For clockwise and counter-clockwise rotation
Part Number :DA30IT25
Ref# DA30-IT

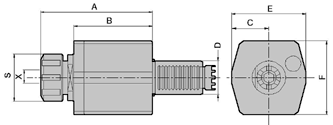

Specifications
D DIN69880 30
Specifications
X Capacity 1-16/ER25
S 42
Max rpm 6000
i 1:1
A 86
B 55
C 33
E 66
F 66
Old# A430I1
