R19 VDI Live Toolholder Radial MT Brauffaldi RH Forward Head 30mm SH ER25 FR30MT2565

R19 VDI Live Driven Tooling Toolholder Radial MT Right D/M Forward Head 30mm ER25 FR30MT2565 R1530MR1





AJAX INDUSTRIES, Your one stop SHOP for VDI LIVE TOOLING, Lathe Chucks and Jaws. Call one of our VDI Tooling Technicians Today. We Welcome the Opportunity to Quote and Help in selection of the proper VDI Static and Rotating Driven Live Tools to fit your CNC Turning, Milling, Drilling and Boring applications. Sauter, Duplomatic, Brauffaldi, Japanese, BMS, HAAS Tools and More for Mazak, Okuma, Haas, Daewoo, Mori Sieki, Doosan, Nakamura, Hwacheon ect... Put WORKHOLDING to work for YOU!!!

Ajaxtoolsupply.com GUARANTEED LOWEST PRICE!

Ajax Industries Sales and Service 1 (800) 543-5998

Description

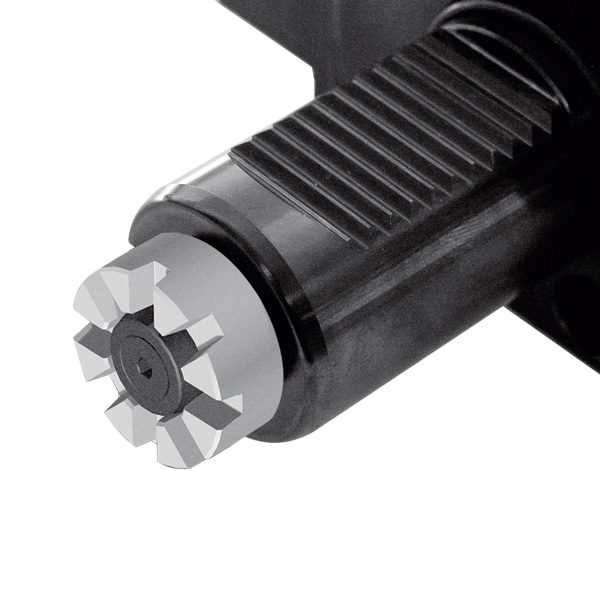

R19 Radial MT Right D/M Forward Head (D=30, ER25)

R19 Radial Drilling & Milling Forward Head

Spur Coupling-MT (Brauffaldi Type)

Model# with "K": Internal Coolant (IC), "/2": Double

Torque (DT), "*2": Double Speed (DS)



Main Features

To be used for collet DIN6499

For endmilling, drilling, reaming

For clockwise and counter-clockwise rotation

External coolant supply



Soecifications

Part Number :FR30MT2565

D DIN69880 30

X Capacity 1-16/ER25

S 42

Max rpm 5000

i 1:1

A 97

B 64

C 74.5

F 41

G 26

M 65

Old# Right-Hand R1530MR1

Old# Left-Hand R1530ML1
