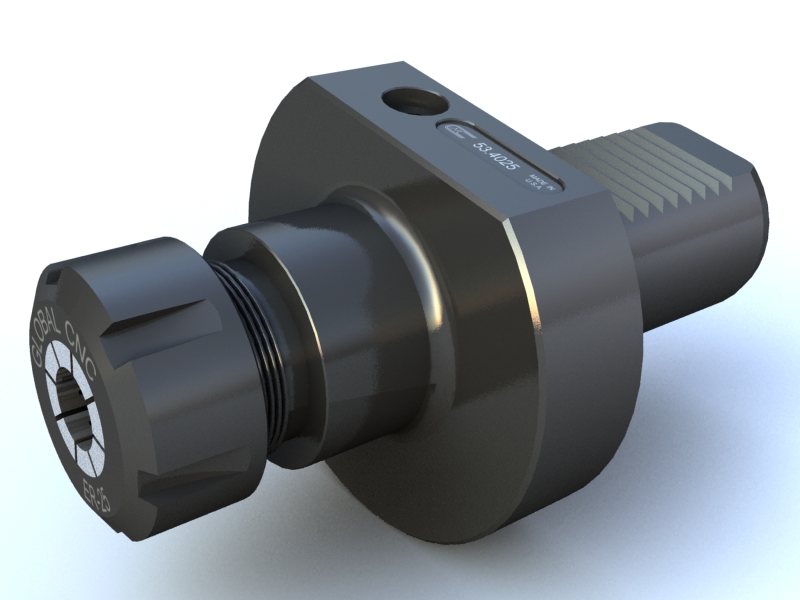

VDI Form E3 ER25 Collet Chuck 40mm x 75mm 53. 4025

VDI Form E3 ER25 Collet Chuck 40mm x 75mm 53. 4025

USA MADE



Specs:

Edge to Center 40mm

Body Length 75mm

Hole Size 1/32 to 5/8



CNC toolholders are available for Mazak, Emco-Maier, Hitachi, Seiki & Okuma machines.

All Toolholders are precision ground, fully case-hardened and coated with a black-oxide finish for long lasting protection.

Material 8620 Alloy Steel manufactured to meet DIN 69 880 specifications.

AJAX has a complete line of Static CNC Lathe VDI Toolholders made to DIN 69880 standards.

All VDI Tool Holders are made to ISO 9001/2000 specifications.

Available in All Metric VDI Shank Sizes: 16mm, 20mm, 25mm, 30mm, 40mm, 50mm, 60mm & 80mm.

Holds Standard Inch Size Tooling; Metric Available Upon Request.

VDI is a Quick Change Toolholding System.

VDI Provides a fast and accurate way of affixing tools to the Turret; Tool Changes are performed in seconds.

Toolholders can be Preset. A Cam Operated Clamping System. AJAX offers a complete line of Live Tooling & Live Tooling Repair.

Nakamura Style VDI Also available.

Toolholders can be manufactured to meet your specifications. (inch or metric sizes)



ADDITIONAL SIZES:

VDI Shank Size Part Number

20MM 53. 2016

25MM 53. 2516

30MM 53. 3020

40MM 53. 4025

50MM 53. 5032

60MM 53. 6032
