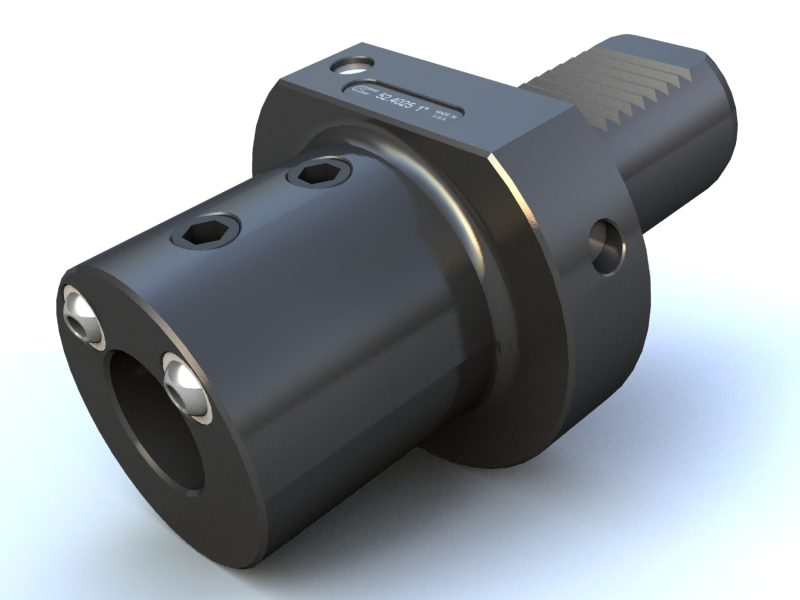

VDI 3/4" E2 60mm SH CNC Lathe Boring Bar Holder 52.6020

VDI 3/4" E2 60mm SH CNC Lathe Boring Bar Holder 52.6020

USA MADE

Specifications

Shank Diameter (mm) 60.00

Maximum Cutting Tool Size (Inch) 3/4

Projection (mm) 90.00

VDI Form Type E1 Through Coolant (Yes/No) Yes

Nose Thread Size 1/2-20

Outside Diameter (mm) 90.00



Features

For Mazak, Emco-Maier, Hitachi, Seiki, Okuma, Hass, Daewoo, Hardinge.

Toolholders are precision ground, and Hardened.

Black-oxide finish for long lasting protection.

Material 8620 To DIN 69 880 specifications.

Ajax has a complete line of CNC VDI Toolholders, Tool Blocks and Live Tooling, Made to DIN 69880 standards and ISO 9001/2000 specifications.

Available VDI Shank Sizes: 16mm, 20mm, 25mm, 30mm, 40mm, 50mm, 60mm & 80mm.

Holds Standard Inch Size Tooling; Metric Available Upon Request.

VDI Provides a fast and accurate way of affixing tools to the Turret; Tool Changes are performed in seconds.

Toolholders can be Preset. By Cam Operated Clamping System.

Toolholders can be manufactured to meet your specifications.

PRICE IS LIST WE WELCOME THE OPPORTUNITY TO QUOTE



Additional Sizes

VDI Shank Size Part Number



60mm 52. 6016

60mm 52. 6020

60mm 52. 6025

60mm 52. 6032

60mm 52. 6040

60mm 52. 6050
