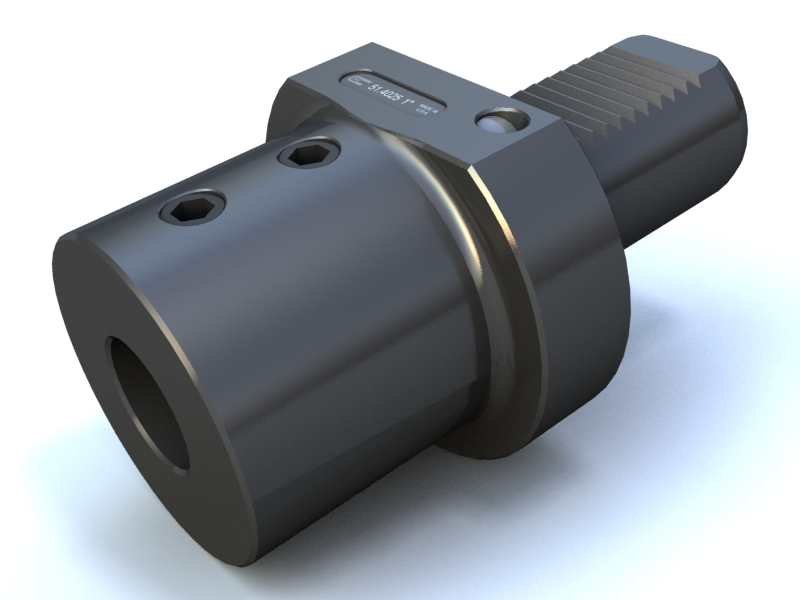

VDI 1" E1 30mm SH CNC Lathe Boring Bar Holder 51.3025

VDI 1" E1 30mm SH CNC Lathe Boring Bar Holder 51.3025

Item# 513025
$229.00
Availability: In Stock
VDI 1" E1 30mm SH CNC Lathe Boring Bar Holder 51.3025

Product Description

VDI 1" E1 30mm SH CNC Lathe Boring Bar Holder 51.3025

USA MADE

Specifications

Shank Diameter (mm) 30.00

Maximum Cutting Tool Size (Inch) 1

Projection (mm) 71.00

VDI Form Type E1 Through Coolant (Yes/No) Yes

Nose Diameter (mm) 55.00

Nose Thread Size 3/8-16



Features

For Mazak, Emco-Maier, Hitachi, Seiki, Okuma, Hass, Daewoo Hardinge.

Toolholders are precision ground, and Hardened.

Black-oxide finish for long lasting protection.

Material 8620 To DIN 69 880 specifications.

Ajax has a complete line of CNC VDI Toolholders, Tool Blocks and Live Tooling, Made to DIN 69880 standards and ISO 9001/2000 specifications.

Available VDI Shank Sizes: 16mm, 20mm, 25mm, 30mm, 40mm, 50mm, 60mm & 80mm.

Holds Standard Inch Size Tooling; Metric Available Upon Request.

VDI Provides a fast and accurate way of affixing tools to the Turret; Tool Changes are performed in seconds.

Toolholders can be Preset. By Cam Operated Clamping System.

Toolholders can be manufactured to meet your specifications.

PRICE IS LIST WE WELCOME THE OPPORTUNITY TO QUOTE



Additional Sizes

VDI Shank Size Part Number

30MM 51. 3016

30MM 51. 3020

30MM 51. 3025

30MM 51. 3032

30MM 51. 3040
