Product Description

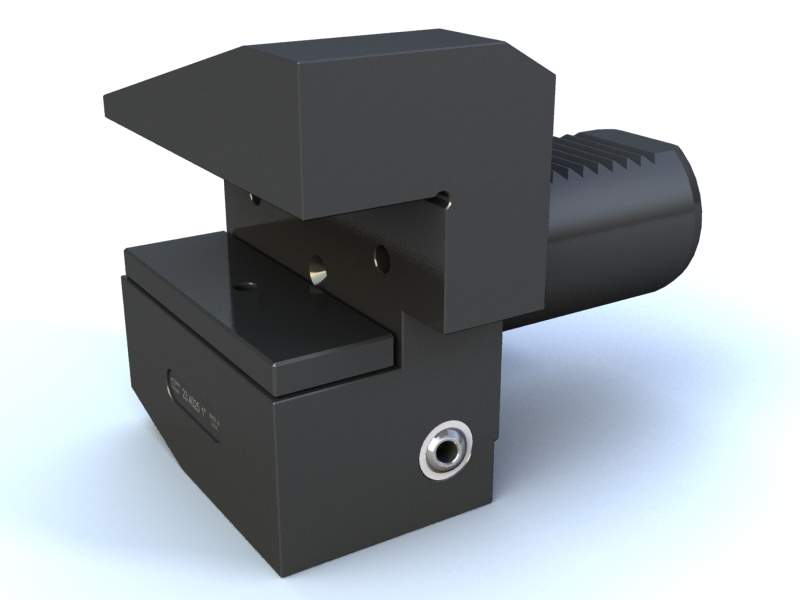

VDI 1 1/4" B3 RH 60mm SH CNC Lathe Tool Holder 23.6032
USA MADE
Specifications
Shank Diameter (mm) 60.00
Maximum Cutting Tool Size (Inch) 1 1/4
Projection (mm) 60.00
VDI Form Type B3 Through Coolant (Yes/No) Yes
Head Width (mm) 125.00
Features
For Mazak, Emco-Maier, Hitachi, Seiki, Okuma, Hass, Daewoo Hardinge.
Toolholders are precision ground, and Hardened.
Black-oxide finish for long lasting protection.
Material 8620 To DIN 69 880 specifications.
Ajax has a complete line of CNC VDI Toolholders, Tool Blocks and Live Tooling, Made to DIN 69880 standards and ISO 9001/2000 specifications.
Available VDI Shank Sizes: 16mm, 20mm, 25mm, 30mm, 40mm, 50mm, 60mm & 80mm.
Holds Standard Inch Size Tooling; Metric Available Upon Request.
VDI Provides a fast and accurate way of affixing tools to the Turret; Tool Changes are performed in seconds.
Toolholders can be Preset. By Cam Operated Clamping System.
Toolholders can be manufactured to meet your specifications.
PRICE IS LIST WE WELCOME THE OPPORTUNITY TO QUOTE
Additional Sizes:
VDI Shank Size Part Number
20MM 23. 2016
25MM 23. 2516
30MM 23. 3020
40MM 23. 4025
50MM 23. 5032
60MM 23. 6032
