Product Description

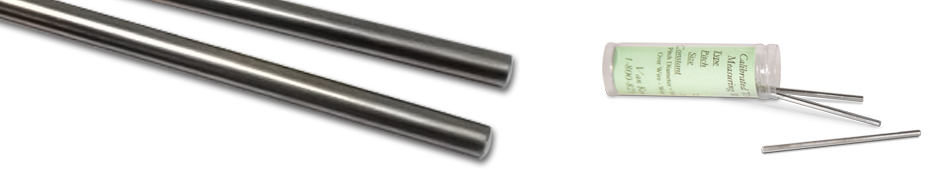

Van Keuren 2mm Pitch, 1-1/2 Inch Long, Thread Pitch Diameter Measuring Wire 1.15mm Nominal Best Wire Diameter, 0.0682 Inch Nominal Constant, 3 Pieces 3199962
Van Keuren Thread and Gear Measuring Wires meet the most recent edition of ASME B89.1.17, which requires a tolerance of 0.00001” for Grade A Wires.
Wire sizes are identified as nominal and the calibrated size will show on the label with correct matching constant. The calibrated wire diameter will be with ± 0.000010 of the exact size of each wire and within ± 0.000020 of the nominal best wire diameter (G), as specified for Grade A Wires.
Each comes with three wires per set. Class XX, Extra Length, Solid Carbide, Flatted Wires and other specials are available – please call Ajax Sales and Service at 1-800-543-5998 and we will gladly prepare a quote for you.
Van Keuren Thread and Gear Measuring Wires meet the most recent edition of ASME B89.1.17, which requires a tolerance of 0.00001” for Grade A Wires.
Wire sizes are identified as nominal and the calibrated size will show on the label with correct matching constant. The calibrated wire diameter will be with ± 0.000010 of the exact size of each wire and within ± 0.000020 of the nominal best wire diameter (G), as specified for Grade A Wires.
Each comes with three wires per set. Class XX, Extra Length, Solid Carbide, Flatted Wires and other specials are available – please call Ajax Sales and Service at 1-800-543-5998 and we will gladly prepare a quote for you.
