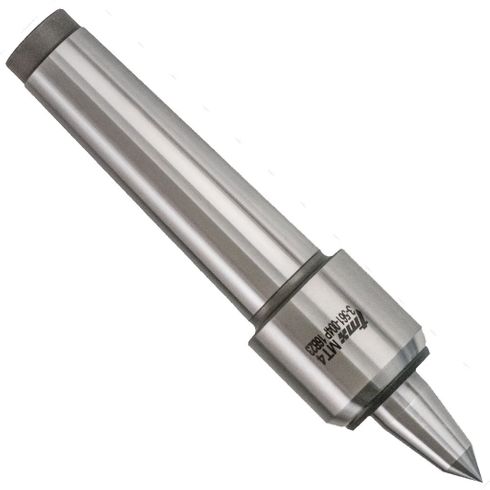

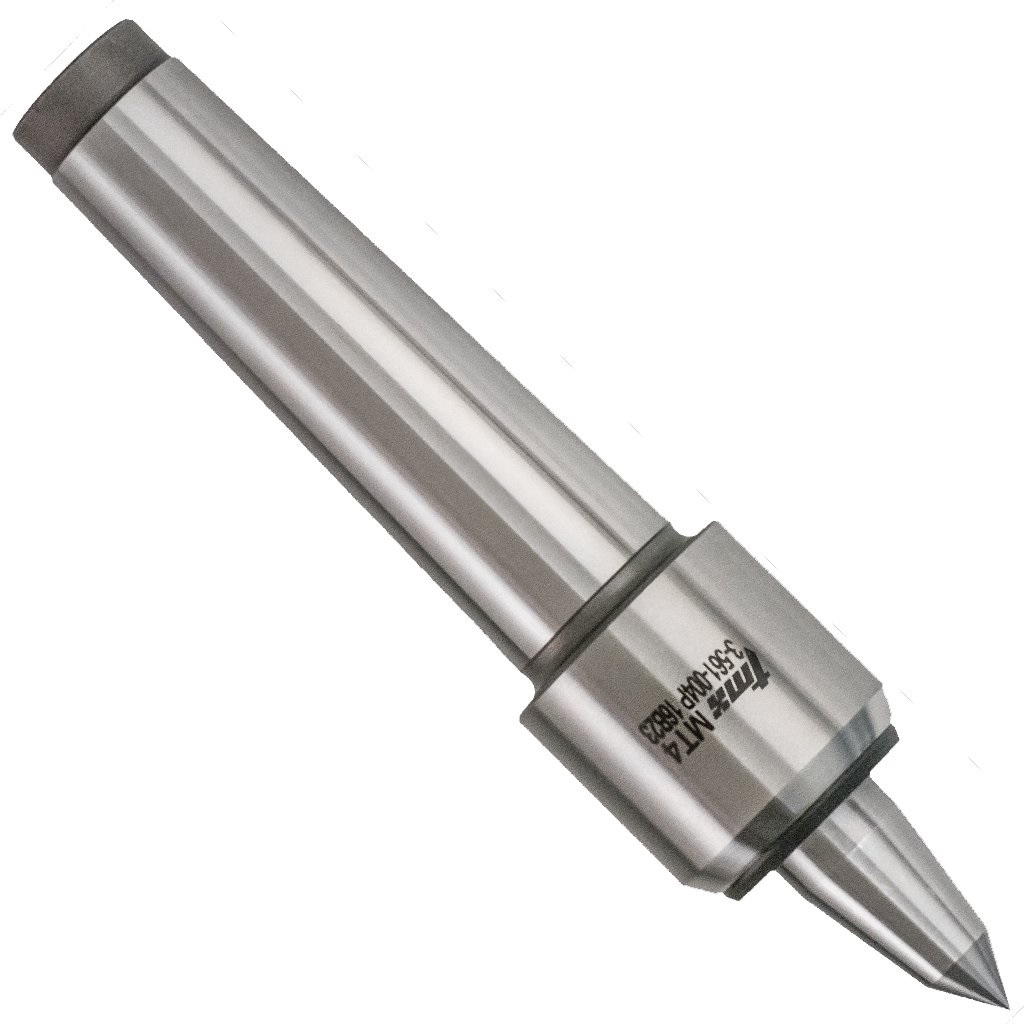

Toolmex Slim Casing Live Center MT#4 Extended Spindle

Made In Poland

Morse Taper 4

Weight lb(kg) 2(1)

Maximum Speed RPM 6300

Maximum weight of workpiece lb(kg) 1540(700)

T.I.R. in(mm) 0.0003 (0.008)

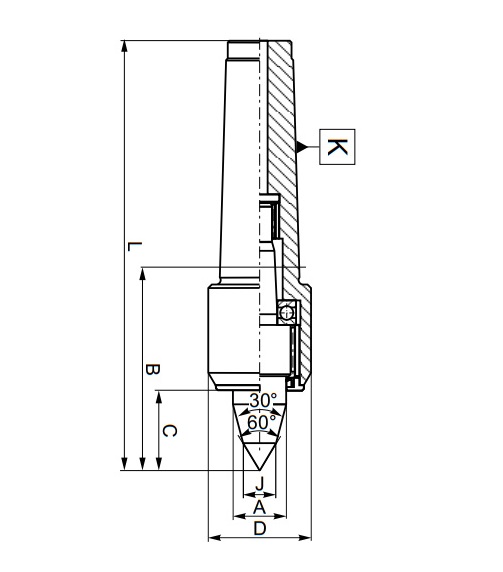

A in(mm) 0.787 (20)

B in(mm) 3.484 (88.5)

C in(mm) 1.496 (38)

D in(mm) 1.496 (38)

J in(mm) 0.512 (13)

L in(mm) 7.52 (191)
