Product Description
Technical Specifications Spindle Nose A2-6
Net Weight (lbs) 58.1
Max. Speed (rpm) 5000
Max. Gripping Force (lbs) 21159
Through Hole Diameter 2.047
Jaw Stroke (Dia.) .299
Plunger Stroke .709
Gripping Range Min. .433
Gripping Range Max. 8.268
Chuck Diameter 8
Chuck Height 4.055
Number of Jaws 3
Model Number 37810860

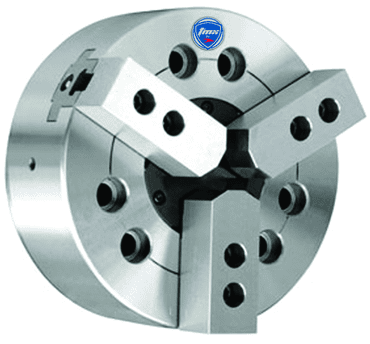

Description 3-Jaw Power Chuck Direct Mount
Brand Name TMX
Mount A2-6
Supplied with spindle mounting plate, Semi-finished draw nut, draw nut wrench, set of soft top jaws, set of t-nuts, wrenches for chuck installation and operation.
Low cost direct replacement for major OE brands
High performance and great value
Use existing top jaws 1.5mm x 60 serrations
Hardened and ground critical surfaces for long life and high accuracy
Large thru hole
1 Year Warranty
