Product Description
Technical Specifications Spindle Nose A2-8
Net Weight (lbs) 149
Max. Speed (rpm) 3300
Max. Gripping Force (lbs) 33071
Through Hole Diameter 3.583
Jaw Stroke (Dia.) .402
Plunger Stroke .945
Gripping Range Min. 1.339
Gripping Range Max. 11.968
Chuck Diameter 12
Chuck Height 5.000
Number of Jaws 3
Model Number 37811280

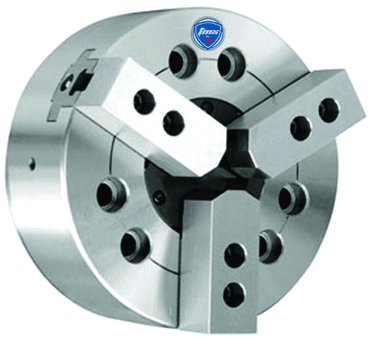

Description 3-Jaw Power Chuck Direct Mount
Brand Name TMX
Mount A2-8
Supplied with spindle mounting plate, Semi-finished draw nut, draw nut wrench, set of soft top jaws, set of t-nuts, wrenches for chuck installation and operation.
Low cost direct replacement for major OE brands
High performance and great value
Use existing top jaws 1.5mm x 60 serrations
Hardened and ground critical surfaces for long life and high accuracy
Large thru hole
1 Year Warranty
Net Weight (lbs) 149
Max. Speed (rpm) 3300
Max. Gripping Force (lbs) 33071
Through Hole Diameter 3.583
Jaw Stroke (Dia.) .402
Plunger Stroke .945
Gripping Range Min. 1.339
Gripping Range Max. 11.968
Chuck Diameter 12
Chuck Height 5.000
Number of Jaws 3
Model Number 37811280
Description 3-Jaw Power Chuck Direct Mount
Brand Name TMX
Mount A2-8
Supplied with spindle mounting plate, Semi-finished draw nut, draw nut wrench, set of soft top jaws, set of t-nuts, wrenches for chuck installation and operation.
Low cost direct replacement for major OE brands
High performance and great value
Use existing top jaws 1.5mm x 60 serrations
Hardened and ground critical surfaces for long life and high accuracy
Large thru hole
1 Year Warranty
