Product Description

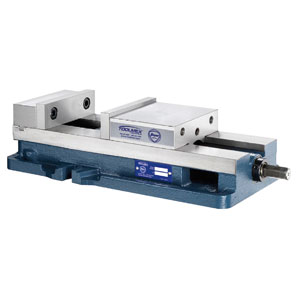

TMX-Toolmex 8" Milling Machine Vise, 10" Jaw Opening 3-220-0081
For all of your CNC Milling Machines needs whether heavy milling, boring, tapping, drilling, or grinding. TMX vises deliver the same proven accuracy every time. Improving on industry standards; TMX Vises are ultra precision in flatness, parallelism and verticality.
Features:
• 10 Year Warranty
• Body made from high quality ductile Iron hardened to 45RC
• Sealed bearing system increases the life of the vise
• Close tolerance bed heights for excellent accuracy
• Anti-lift mechanism keeps the work piece from lifting
• Chip cover for lead screw protection
• Wrench Included
TECHNICAL DATA
Body Length A in 21.85
Height B in 5.51
Width C in 11.61
Jaw Width D in 7.99
E in 2.28
Overall Length F in 23.03
G in 4.72
H in 3.31
I in 1.97
J in 2.20
K in 6.18
L in 0.81
M in 10.43
N in 0.95
Weight lb 150
