Product Description

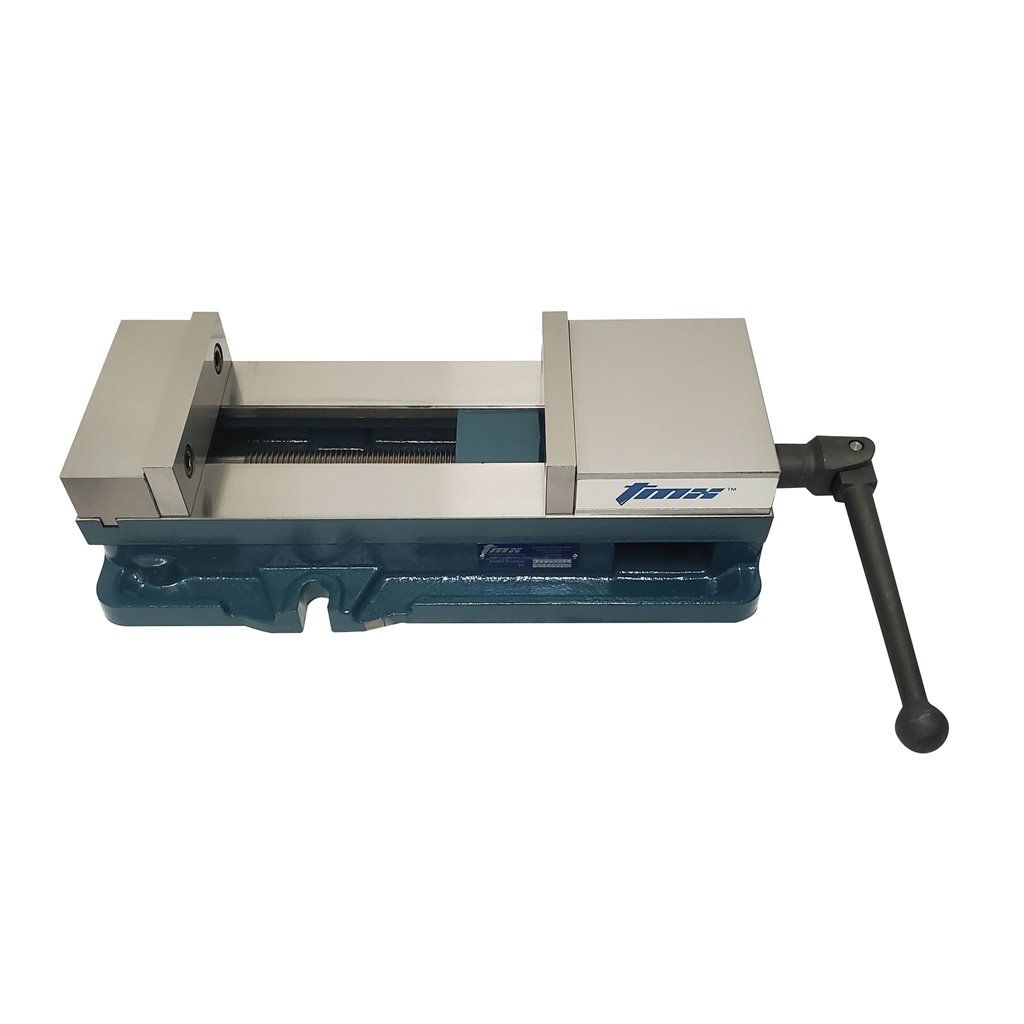

TMX-Toolmex 6" Milling Machine Vise, 9" Jaw Opening 3-220-0068
For all of your CNC Milling Machines needs whether heavy milling, boring, tapping, drilling, or grinding. TMX vises deliver the same proven accuracy every time. Improving on industry standards; TMX Vises are ultra precision in flatness, parallelism and verticality.
Features:
• 10 Year Warranty
• Body made from high quality ductile Iron hardened to 45RC
• Sealed bearing system increases the life of the vise
• Close tolerance bed heights for excellent accuracy
• Anti-lift mechanism keeps the work piece from lifting
• Chip cover for lead screw protection
• Wrench Included

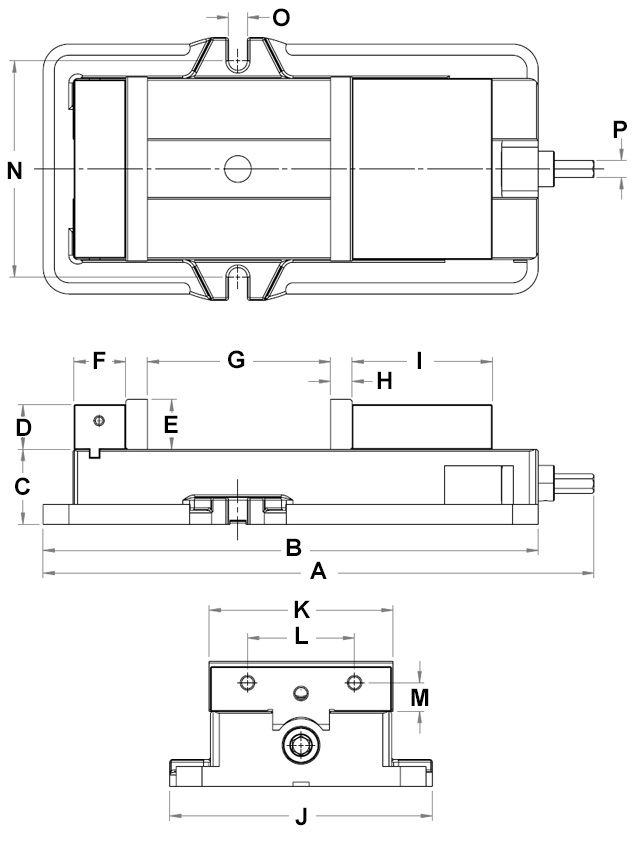

TECHNICAL DATA
Body Length A in 17.20
Height B in 4.63
Width C in 8.75
Jaw Width D in 5.98
E in 2.05
Overall Length F in 18.94
G in 3.87
H in 2.88
I in 1.50
J in 1.75
K in 4.84
L in 0.69
M in 8.90
N in 0.71
Weight lb 80
