Product Description

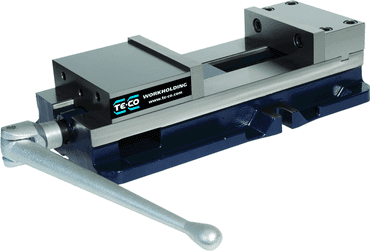

The PWS-8110 sets the standard for quality.
Featuring the largest opening in its class of eleven inches and a more robust main screw that can handle higher torque loads and transmit higher clamping pressure. An angled slide and locking jaw design to prevent lifting of the moveable jaw, and the four bolt design on the stationary jaw reduces deflection by 25%.
Single Station Vise
Powder coated paint resists flaking and peeling Hardened vise bed and jaw plates
Sealed and lubricated needle roller thrust bearing for maximum life and minimum torque
Repeatability within .001"
Outsied rails of body are machined within 0.0005" square to jaw
TECHNICAL SPECIFICATIONS
Base Size 11.5 x 21.81
Clamp Force 12000 lbs
Jaw Depth 5.75
Jaw Height 2.20
Jaw Opening 11
Jaw Width 8
Overall Height 5.275
V-Jaws Max Opening 22.55
Vise Body Width 8
Vise Height 5.275
Vise Length 21.81
Weight 176 lbs
