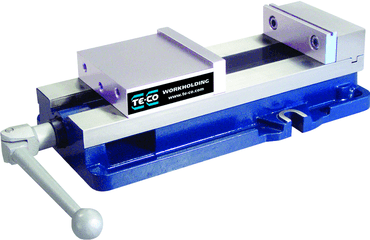

TE-CO 6" Wide Jaw 9" Opening Milling Machine Vise PWS-6900

TE-CO  6" Wide Jaw 9" Opening Milling Machine Vise PWS-6900
Item# PWS-6900
Regular price: $592.00
Sale price: $479.00
Availability: In Stock

Product Description

TE-CO  6" Wide Jaw 9" Opening Milling Machine Vise PWS-6900


Priced 15-20% less than comparable models, the PWS-6900 has it all.

Featuring the largest opening in its class of nine inches and a more robust main screw that can handle higher torque loads and transmit higher clamping pressure. The angled slide and locking jaw design prevents lifting of the moveable jaw.



Single Station Vise

Powder coated paint resists flaking and peeling

Hardened vise bed and jaw plates

Sealed and lubricated needle roller thrust bearing for maximum life and minimum torque

Repeatability within .001"

Outsied rails of body are machined within 0.0005" square to jaw



TECHNICAL SPECIFICATIONS

Base Size 8.77 x 17.206

Brand Name Te-Co

Clamp Force 8200 lbs

Jaw Depth 4.85

Jaw Height 1.50

Jaw Opening 9

Jaw Width 5.94

Key Slot Width 11/16

Overall Height 4.375

V-Jaws Max Opening 17.2

Vise Body Width 5.94

Vise Height 4.375

Vise Length 17.206

Weight 81 lbs
