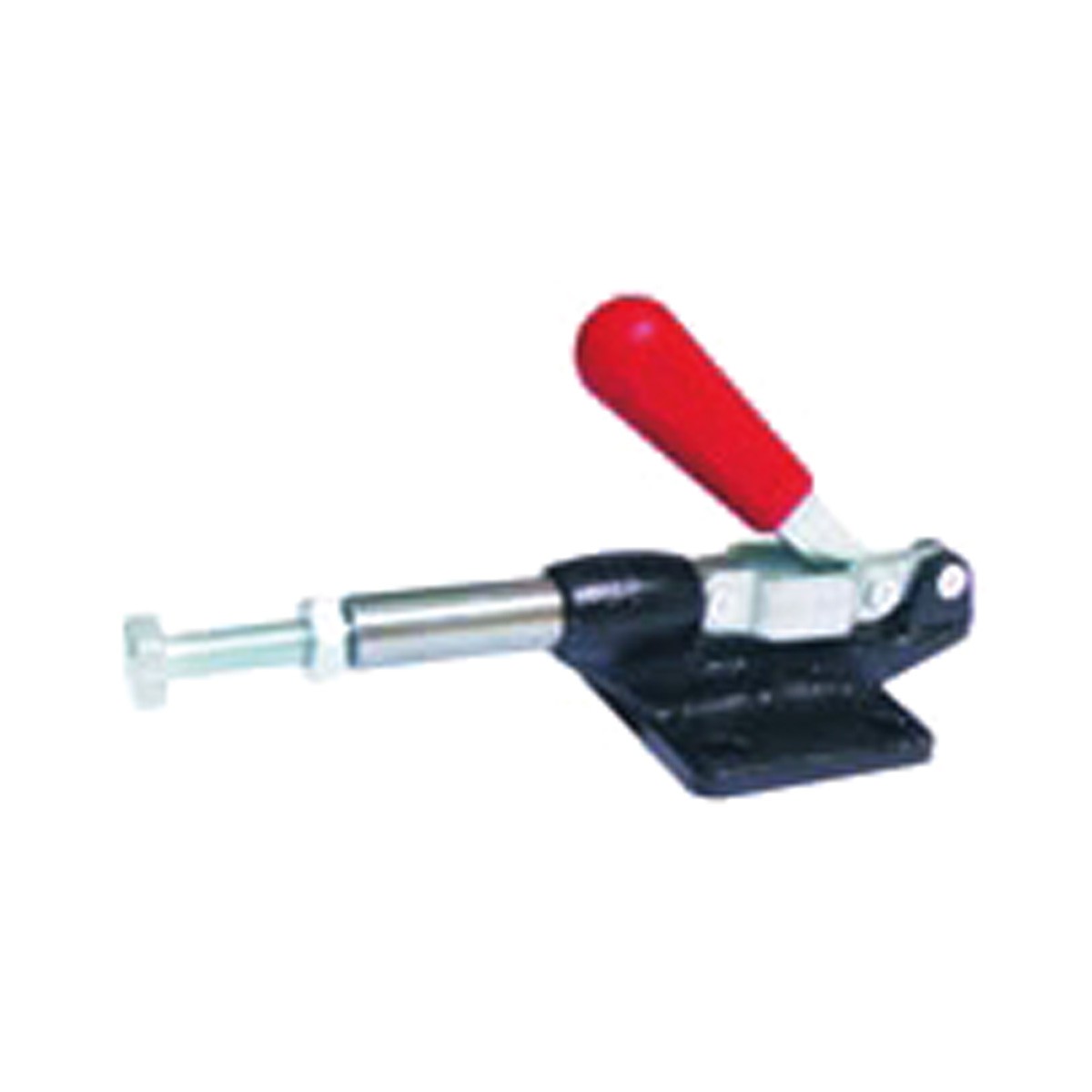

STRAIGHT LINE ACTION TOGGLE CLAMP 500 LBS CAPACITY 45 DEG. With HANDLE & IRON BASE 500 LBS CAPACITY 3900-0388

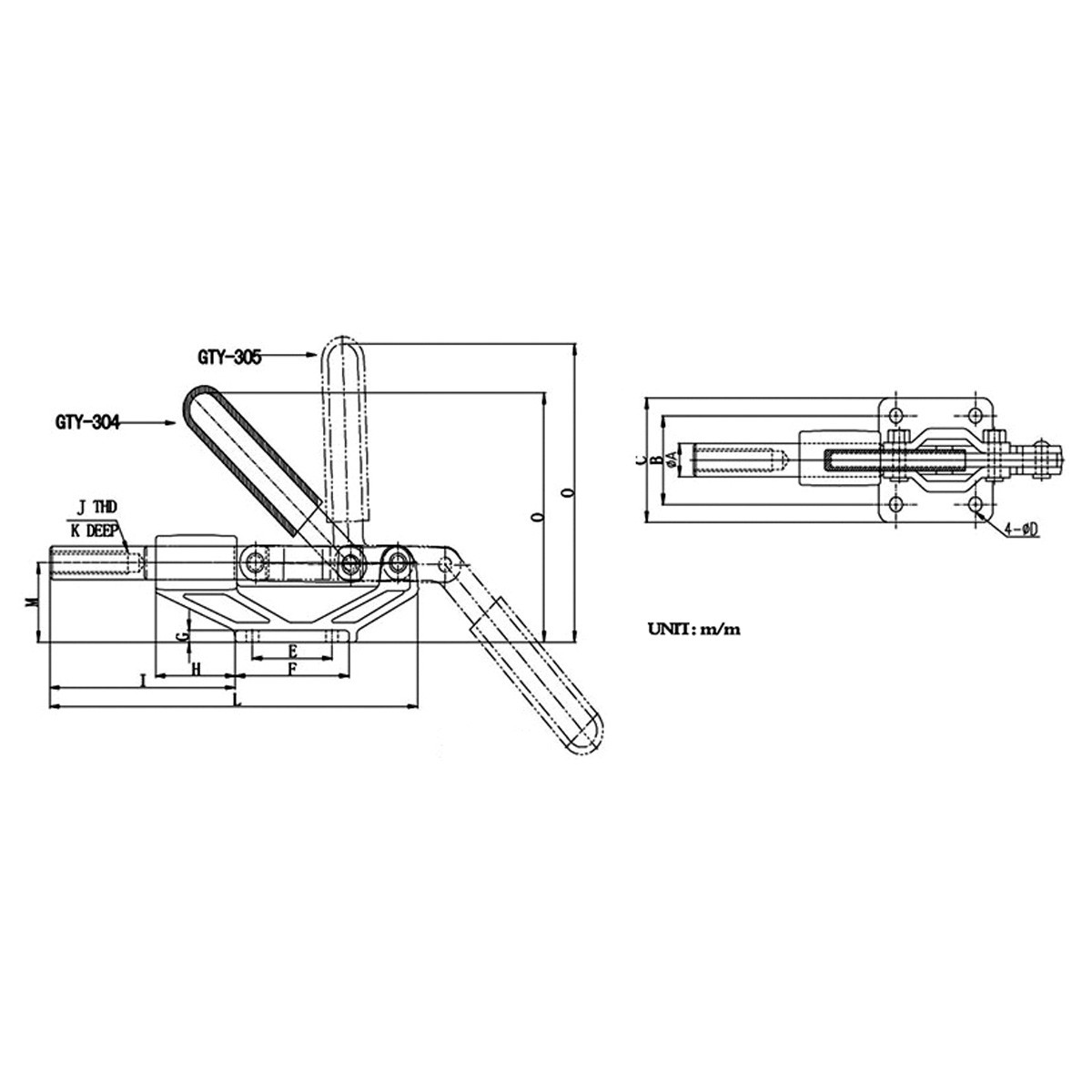

*CLICK ON THUMBNAIL TO UP-SIZE SCHEMATIC
FEATURES
Ajax 304-C
Ductile iron base for close fit machining, strength and durability.
All parts are die stamped from solid steel.
Red Hand grip for safety & convenience.
Double plated to avoid rust.
Carbon steel rivet for durability.
SPECIFICATIONS
A 12.7mm
B 41.1
C 57.2
D 6.7
E 35
F 52.4
G 4.8
H 20.6
I 52.4
J M8P=1.25
K 30.2
L 125.4
M 25.4
O 74.6
STROKE 82
