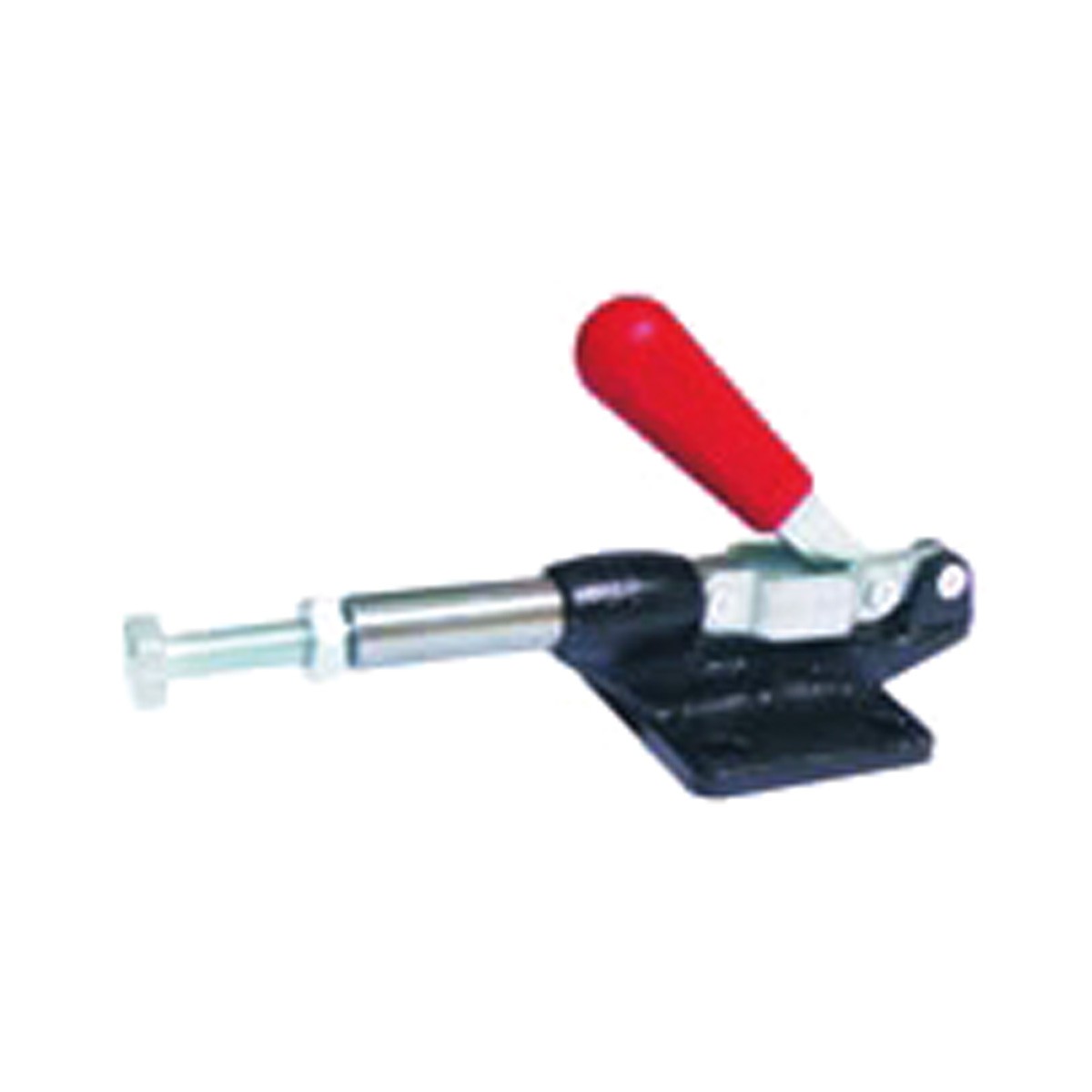

STRAIGHT LINE ACTION TOGGLE CLAMP 1500 LBS CAPACITY 90 DEG. With HANDLE & IRON BASE 3900-0393

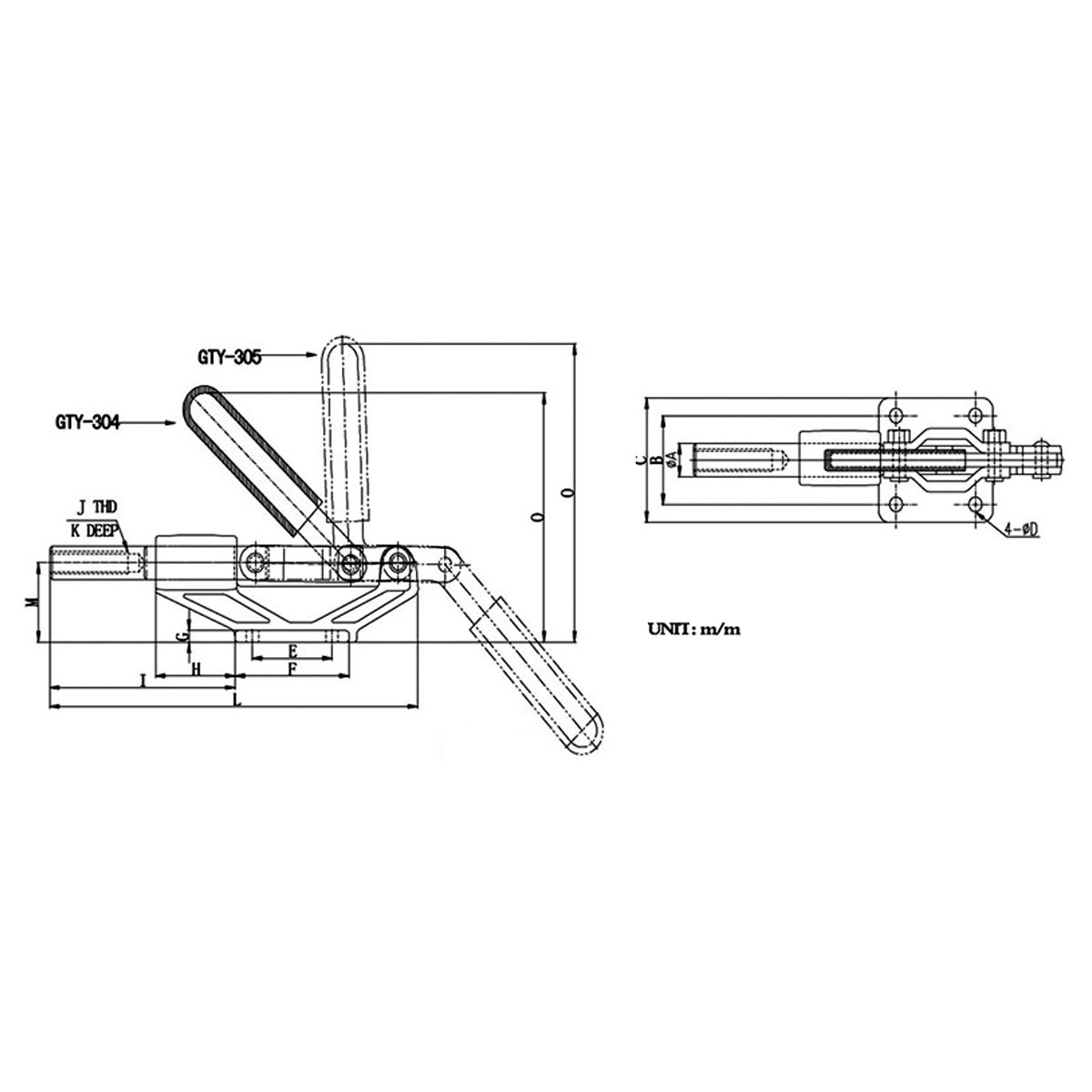

*CLICK ON THUMBNAIL TO UP-SIZE SCHEMATIC
FEATURES
Ajax 305-H
Ductile iron base for close fit machining, strength and durability.
All parts are die stamped from solid steel.
Red Hand grip for safety & convenience.
Double plated to avoid rust.
Carbon steel rivet for durability.
SPECIFICATIONS
A 19.2mm
B 50.8
C 72
D 8.3
E 50.8
F 72
G 6.4
H 50.8
I 120.8
J M12P=1.75
K 49.2
L 238.2
M 50.8
N 171.6
STROKE 60
