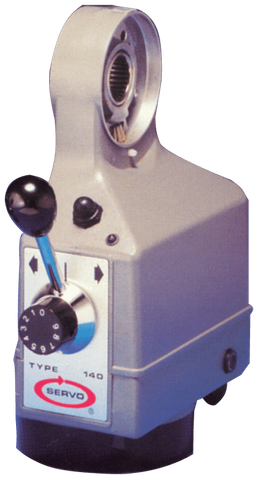

Servo Table Power Feed Z-Axis Table Feed - For Bridgeport; Jet; Wilton

Z - Axis

Semi-automated machining on Class 1 mills to 3 hp.

Peak Torque (full-wave SCR control compound DC motor): to 150 in.- lb. / 17 NM torque

Intermittent Torque: 120 in.- lb. / 13.6 NM

Continuous Torque: 100 in.- lb. / 11.3 NM

Variable Feed Rate: .50-35 IPM / 13-889 mm/min

Gear Reduction Ratio (motor to screw shaft): 72:1.

Helical gearing and torque limiting friction safety clutch with new and improved gear

Electrical: 110V, 50/60 Hz, 2.5A.

Approximate weight: 15 lb. / 6.8 kg.

Bridgeport Series 1
