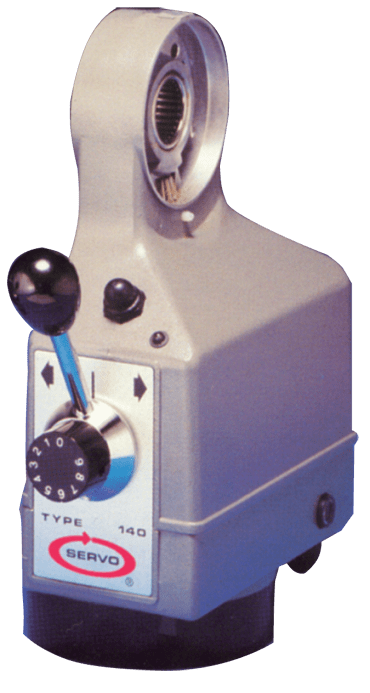

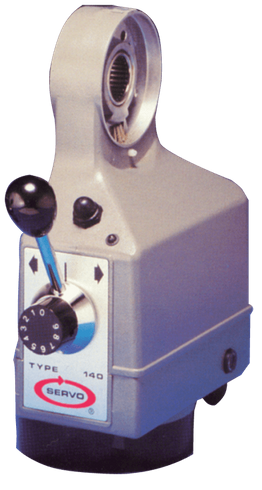

X - Axis
Semi-automated machining on Class 1 mills to 3 hp.
Peak Torque (full-wave SCR control compound DC motor): to 150 in.- lb. / 17 NM torque
Intermittent Torque: 120 in.- lb. / 13.6 NM
Continuous Torque: 100 in.- lb. / 11.3 NM
Variable Feed Rate: .50-35 IPM / 13-889 mm/min
Gear Reduction Ratio (motor to screw shaft): 72:1.
Helical gearing and torque limiting friction safety clutch with new and improved gear
Electrical: 110V, 50/60 Hz, 2.5A.
Approximate weight: 15 lb. / 6.8 kg.
Bridgeport Series 1
