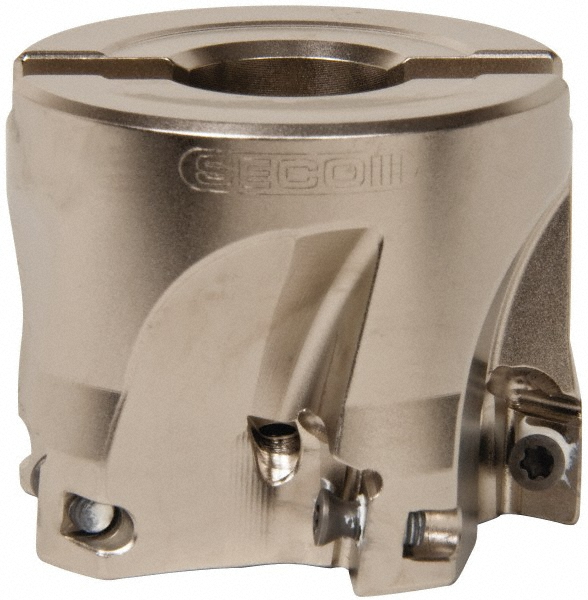

Seco - 52596 - Indexable Square-Shoulder Face Mills Cutting Diameter (Inch): 2

Seco - 52596 - Indexable Square-Shoulder Face Mills Cutting Diameter (Inch): 2
Item# 52596
$694.95
Availability: In Stock

Product Description

Indexable Square-Shoulder Face Mills; Cutting Diameter (Inch): 2; Cutting Diameter (Decimal Inch): 2.0000; Maximum Depth of Cut (Decimal Inch): 0.4330; Lead Angle ( ): 0/90; Arbor Hole Diameter (Inch): 3/4; Arbor Hole Diameter (Decimal Inch): 0.7500 Cutting Diameter (Inch) 2 Cutting Diameter (Decimal Inch) 2.0000 Maximum Depth of Cut (Decimal Inch) 0.4330 Lead Angle ( ) 0/90 Arbor Hole Diameter (Inch) 3/4 Arbor Hole Diameter (Decimal Inch) 0.7500 Overall Height (Decimal Inch) 1.5700 Number of Cutter Inserts 5 Insert Compatibility XO.X 1204.. Series Super Turbo Cutter Style R220.69 Cutting Direction Right Hand Maximum RPM 14800 Through Coolant (Yes/No) Yes
