Product Description

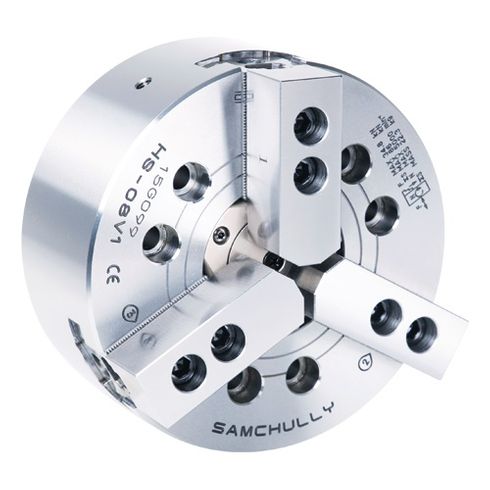

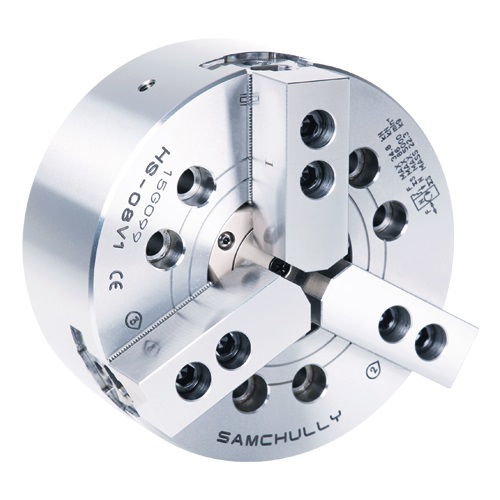

6" 3-jaw, high-speed, open-center plain back hydraulic chuck with
blank draw nut
169mm O.D.
46mm bore
15 ~ 169mm clamping range
5.5mm jaw stroke on diameter
12mm plunger stroke
57KN maximum static gripping force
1.5x60° master jaws serration; 6000 maximum rpm
blank draw nut
169mm O.D.
46mm bore
15 ~ 169mm clamping range
5.5mm jaw stroke on diameter
12mm plunger stroke
57KN maximum static gripping force
1.5x60° master jaws serration; 6000 maximum rpm
