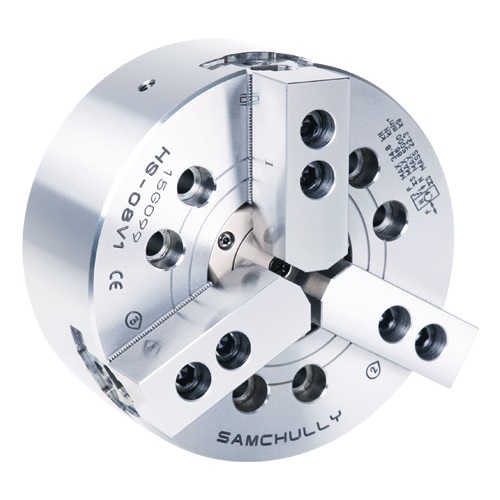

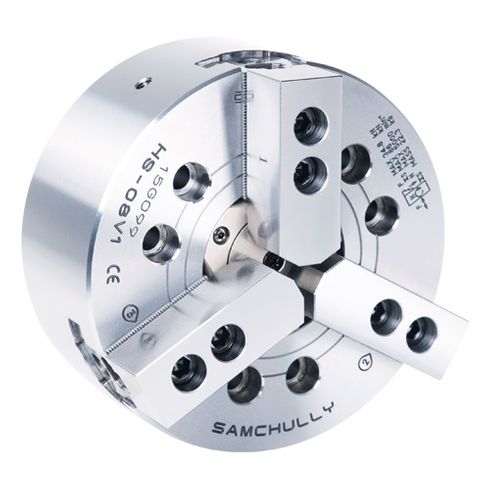

Samchully 12" 3 Jaw Power Chuck HS12
Product Description
12" 3-jaw, high-speed, open-center plain back hydraulic chuck with
blank draw nut
310mm O.D.
91mm bore
34 ~ 304mm clamping range
10.6mm jaw stroke on diameter
23mm plunger stroke
144KN maximum static gripping force
1.5x60° master jaws serration
3300 maximum rpm
blank draw nut
310mm O.D.
91mm bore
34 ~ 304mm clamping range
10.6mm jaw stroke on diameter
23mm plunger stroke
144KN maximum static gripping force
1.5x60° master jaws serration
3300 maximum rpm
