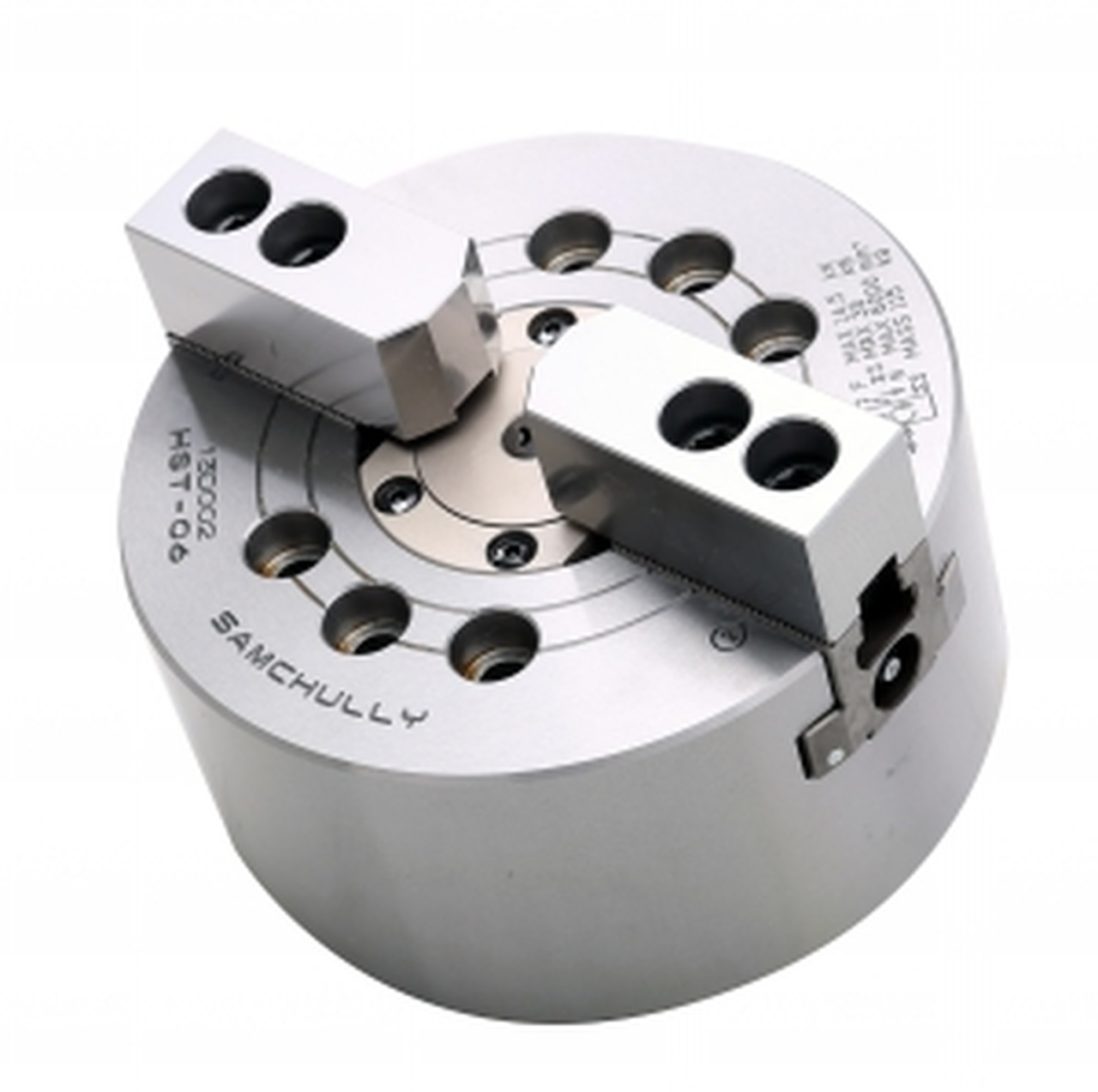

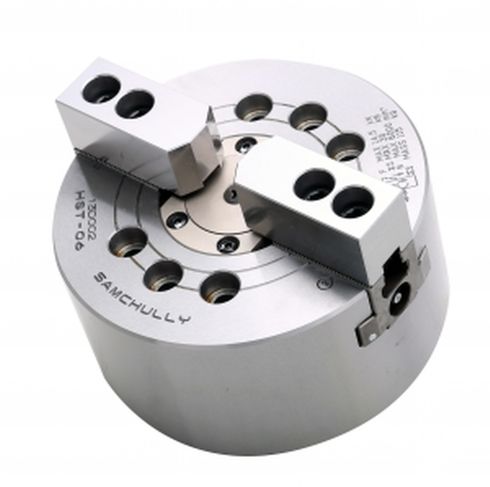

Samchully 12" 2 Jaw Power Chuck
Product Description
12" 2-jaw, high-speed
open-center plain back hydraulic chuck with blank draw nut
310mm O.D
91mm bore; 34 ~ 304mm clamping range
10.6mm jaw stroke on diameter
23mm plunger stroke
144KN maximum static gripping force
1.5x60° master jaws serration
3300 maximum rpm
open-center plain back hydraulic chuck with blank draw nut
310mm O.D
91mm bore; 34 ~ 304mm clamping range
10.6mm jaw stroke on diameter
23mm plunger stroke
144KN maximum static gripping force
1.5x60° master jaws serration
3300 maximum rpm
