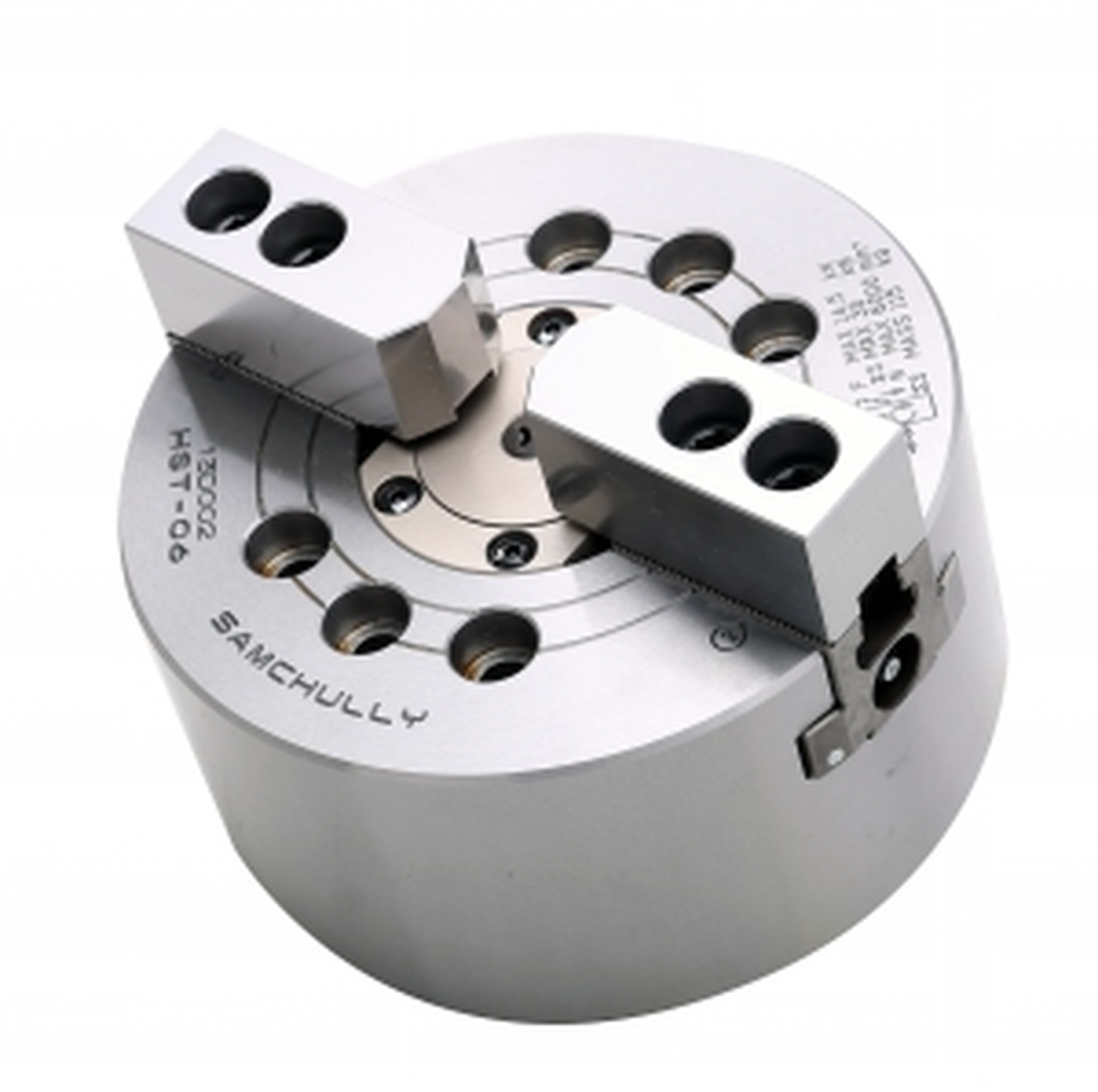

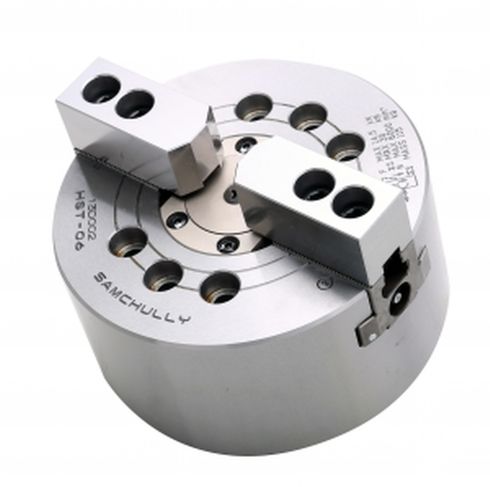

Samchully 10" 2 Jaw Power Chuck
Product Description
10" 2-jaw, high-speed
open-center plain back hydraulic chuck with blank draw nut
254mm O.D.
77mm bore
31 ~ 254mm clamping range
8.8mm jaw stroke on diameter
19mm plunger stroke
111KN maximum static gripping force
1.5x60° master jaws serration
4200 maximum rpm
open-center plain back hydraulic chuck with blank draw nut
254mm O.D.
77mm bore
31 ~ 254mm clamping range
8.8mm jaw stroke on diameter
19mm plunger stroke
111KN maximum static gripping force
1.5x60° master jaws serration
4200 maximum rpm
