Product Description

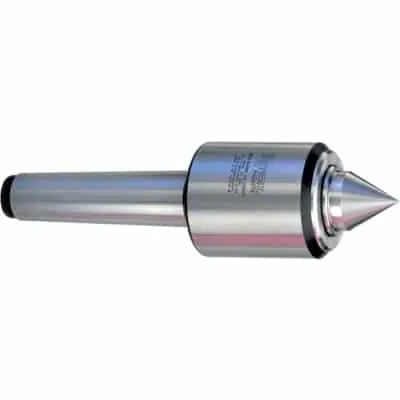

An excellent choice for precision turning, grinding, and hard-turning.
Guaranteed accurate to ± 0.00005” TIR or better.
Precision assembly of three angular contact bearings secured by a lock nut provide exceptional rigidity and accuracy.
Low-profile head offers superior tool clearance.
Exclusive Roto-Shield™ coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life.
Body and point are hardened and ground for strength and long life.
All Royal Live Centers are proudly Made in U.S.A.

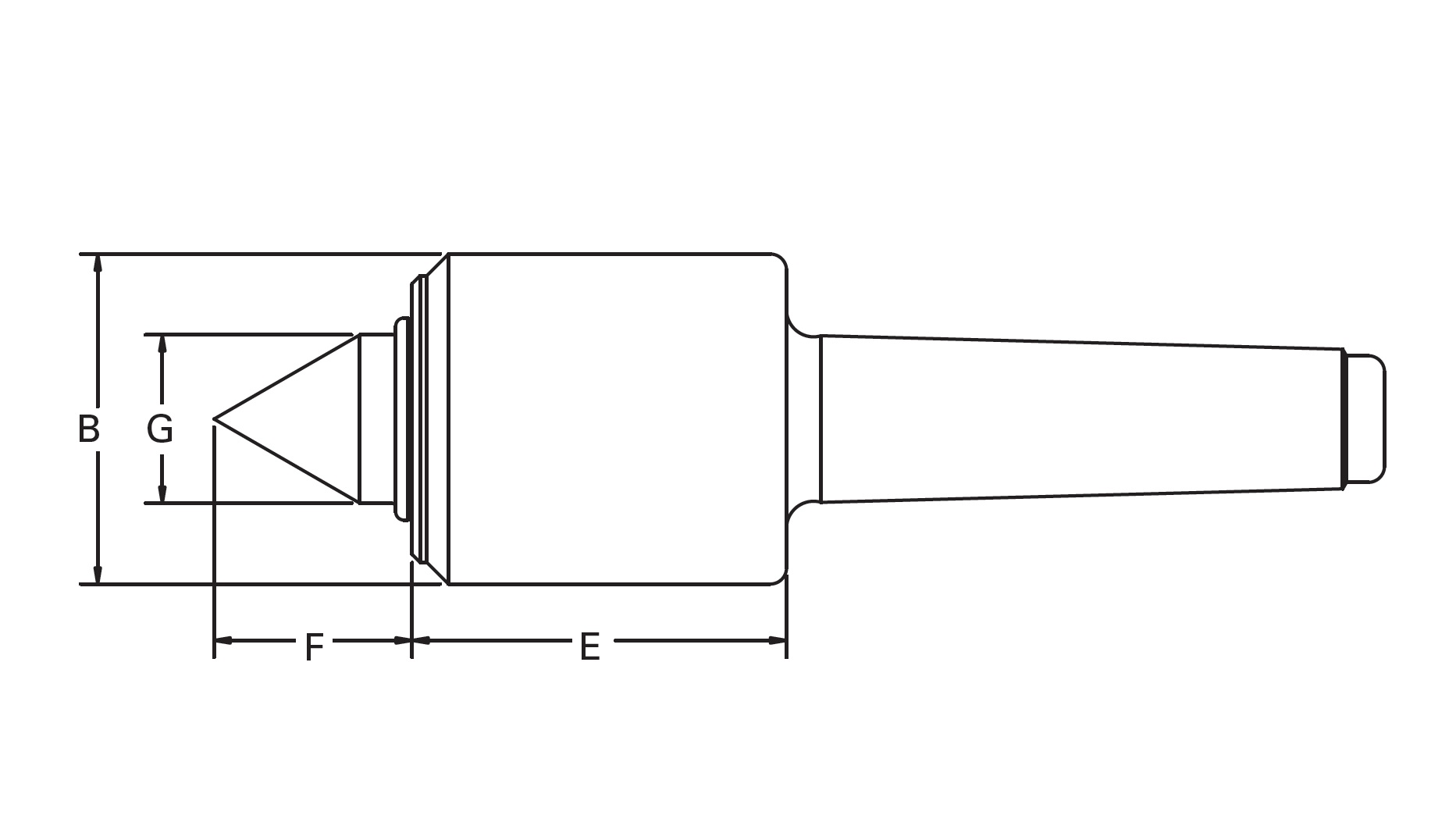

Center Dimension A (Center Taper) 3 MT
Center Dimension B 1.70
Center Dimension E 2.120
Weight of Workpiece (lbs.) 885
Center Dimension F 1.07
Center Dimension G 0.88
Max Suggested RPM 6,000
Thrust Load (lbs.) 1,270
Guaranteed accurate to ± 0.00005” TIR or better.
Precision assembly of three angular contact bearings secured by a lock nut provide exceptional rigidity and accuracy.
Low-profile head offers superior tool clearance.
Exclusive Roto-Shield™ coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life.
Body and point are hardened and ground for strength and long life.
All Royal Live Centers are proudly Made in U.S.A.
Center Dimension A (Center Taper) 3 MT
Center Dimension B 1.70
Center Dimension E 2.120
Weight of Workpiece (lbs.) 885
Center Dimension F 1.07
Center Dimension G 0.88
Max Suggested RPM 6,000
Thrust Load (lbs.) 1,270
