Product Description

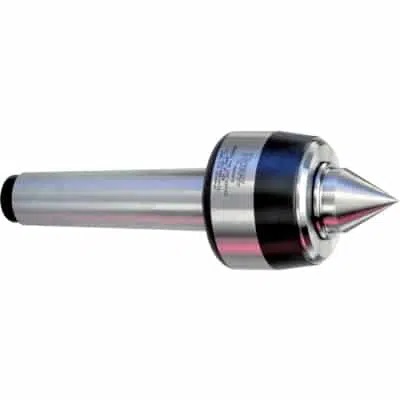

One of our most popular models – an excellent heavy-duty live center designed to handle almost all CNC and manual turning jobs.
Guaranteed accurate to ± 0.00005” TIR or better.
Heavy-duty precision bearings provide exceptional radial and thrust load capacities.
The thick, rigid point extends into the shank where it is supported by a large needle bearing for increased strength and vibration dampening.
Exclusive Roto-Shield™ coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life.
Body and point are hardened and ground for accuracy and durability.
All Royal Live Centers are proudly Made in U.S.A.

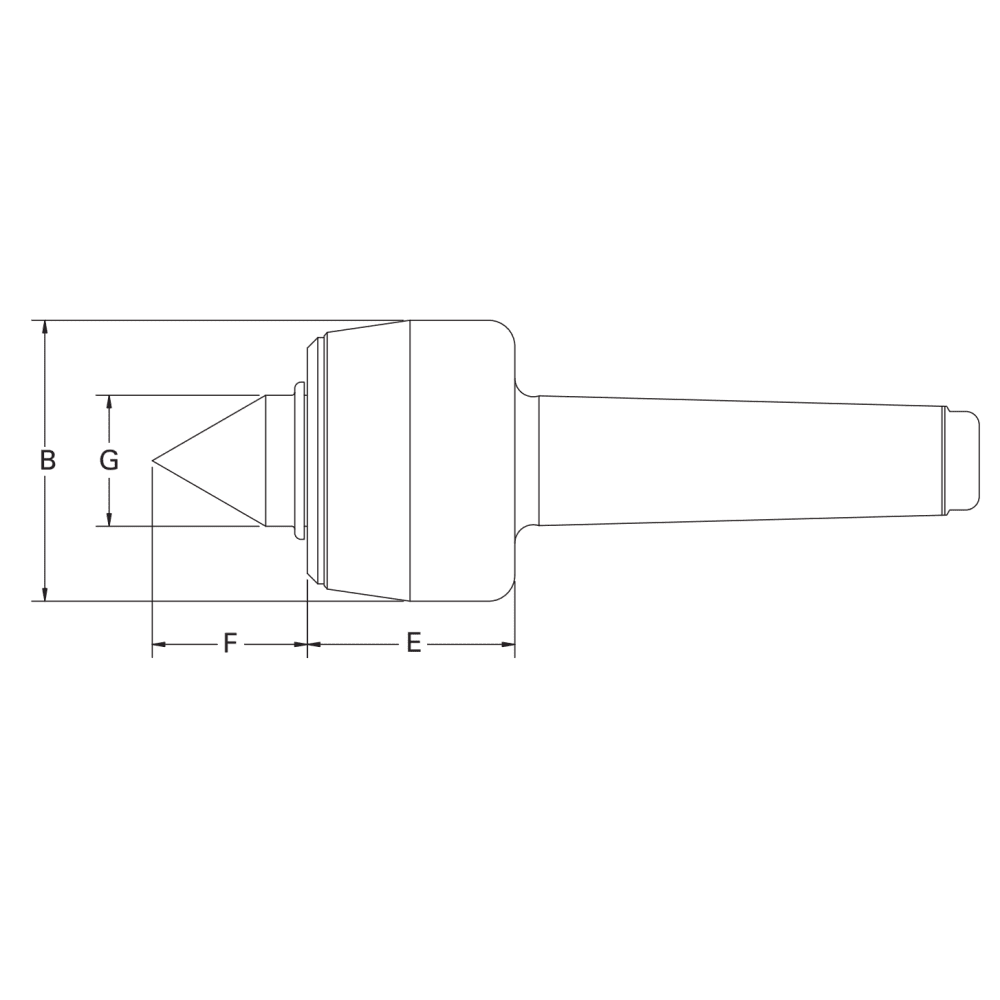

Center Dimension A (Center Taper) 5 MT
Center Dimension B 3.45
Center Dimension E 2.810
Weight of Workpiece (lbs.) 3,260
Center Dimension F 1.84
Center Dimension G 1.50
Max Suggested RPM 3,500
Thrust Load (lbs.) 5,700
