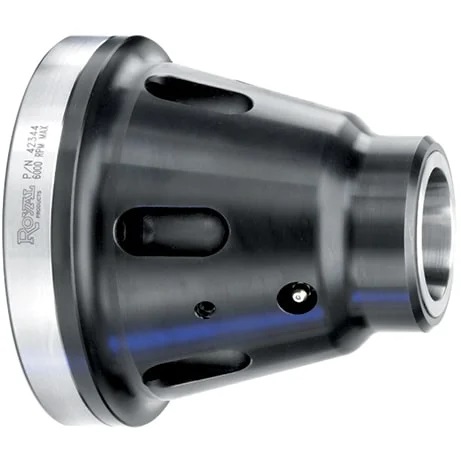

Product Description
These chucks utilize spring-type collets and therefore do not provide the parallel grip functionality or wide gripping range of our Quick-Grip™ models.
Dead-length operation - sleeve pushes forward to compress the collet, providing precise z-axis part positioning.
Low-profile nose offers outstanding tool clearance.
Includes free custom machined connector to fit your exact lathe drawtube specifications.
In-stock for same-day shipping.
Spindle Type A2-6
Collet Chuck Weight (lbs) 25
Collet Type 16C
Low-Profile Capacity 1 5⁄8″

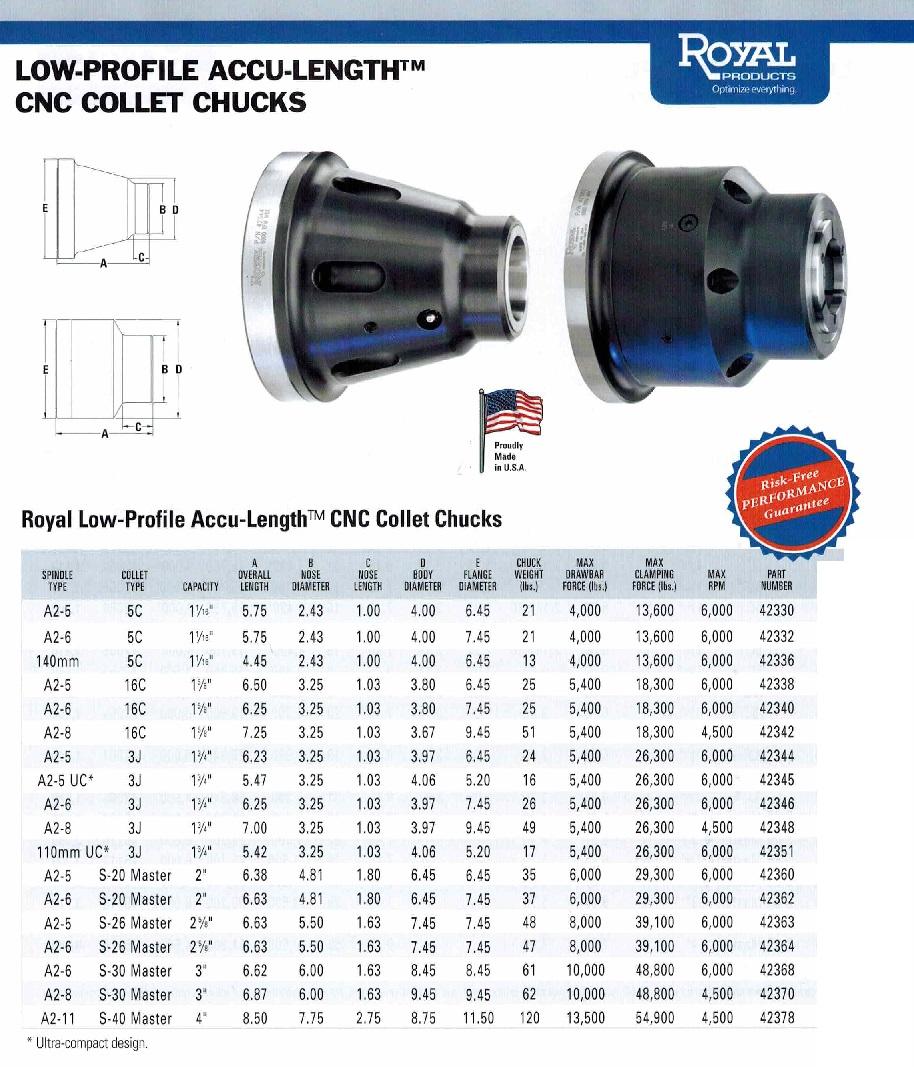

(A) Overall Length 6.25
(B) Nose Diameter 3.25
(C) Nose Length 1.03
(D) Body Diameter 3.80
(E) Flange Diameter 7.45
Max Drawbar Force (lbs) 5,400
Max Clamping Force (lbs) 18,300
Max RPM 6,000
