R19 VDI Live Toolholder Radial MT RH Forward Head 40mm ER32 FR40MT3285 R1540MR1

R19 VDI Live Toolholder Radial MT RH Forward Head 40mm ER32 FR40MT3285 R1540MR1





AJAX INDUSTRIES, Your one stop SHOP for VDI LIVE TOOLING, Lathe Chucks and Jaws. Call one of our VDI Tooling Technicians Today. We Welcome the Opportunity to Quote and Help in selection of the proper VDI Static and Rotating Driven Live Tools to fit your CNC Turning, Milling, Drilling and Boring applications. Sauter, Duplomatic, Brauffaldi, Japanese, BMS, HAAS Tools and More for Mazak, Okuma, Haas, Daewoo, Mori Sieki, Doosan, Nakamura, Hwacheon ect... Put WORKHOLDING to work for YOU!!!

Ajaxtoolsupply.com GUARANTEED LOWEST PRICE!

Ajax Industries Sales and Service 1 (800) 543-5998

Description

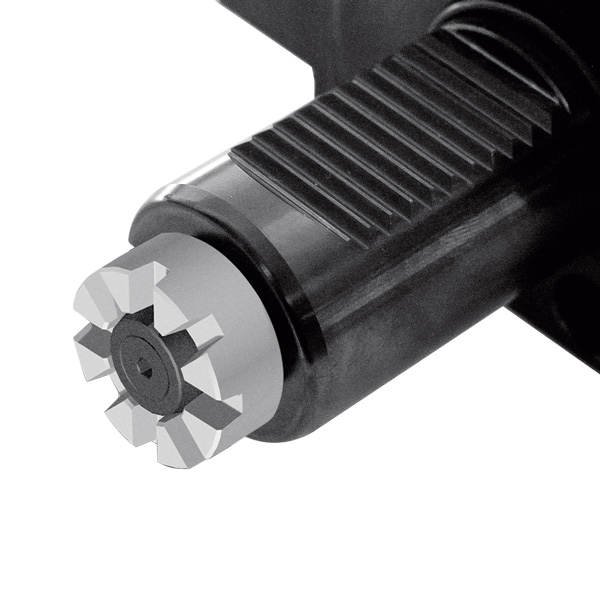

R19 Radial MT Right D/M Forward Head (D=40, ER32)

R19 Radial Drilling & Milling Forward Head

Spur Coupling-MT (Brauffaldi Type)

Model# with "K": Internal Coolant (IC), "/2": Double

Torque (DT), "*2": Double Speed (DS)



Main Features

To be used for collet DIN6499

For endmilling, drilling, reaming

For clockwise and counter-clockwise rotation

External coolant supply



Specifications

Part Number :FR40MT3285

D DIN69880 40

X Capacity 2-20/ER32

S 50

Max rpm 5000

i 1:1

A 119

B 80

C 71

F 40

G 23

M 85

Old# Right-Hand R1540MR2

Old# Left-Hand R1540ML2
