Product Description
AJAX INDUSTRIES, Your one stop SHOP for VDI LIVE TOOLING, Lathe Chucks and Jaws. Call one of our VDI Tooling Technicians Today. We Welcome the Opportunity to Quote and Help in selection of the proper VDI Static and Rotating Driven Live Tools to fit your CNC Turning, Milling, Drilling and Boring applications. Sauter, Duplomatic, Brauffaldi, Japanese, BMS, HAAS Tools and More for Mazak, Okuma, Haas, Daewoo, Mori Sieki, Doosan, Nakamura, Hwacheon ect... Put WORKHOLDING to work for YOU!!!
Description

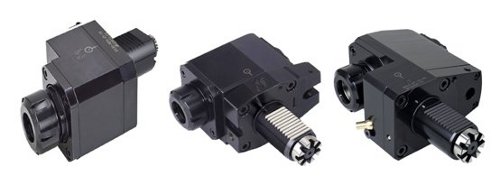

R18 Radial MT Left D/M Backward Head (D=40, ER32)
R18 Radial Drilling & Milling Backward Head
Spur Coupling-MT (Brauffaldi Type)
Model# with "K": Internal Coolant (IC), "/2": Double
Torque (DT)
Main Features
For Milling, Drilling Reaming.
To be used for Collet DIN 6499
For clockwise and counter-clockwise rotation.
External Coolant supply
Specifications
Part Number :BL40MT3290
D DIN69880 40
X Capacity 2-20/ ER32
S 50
Max rpm 5000
i 1:1
A 124
B 80
C 44
E 110
F 42
G 34
M 90
Old# Right-Hand R1140MR1
Old# Left-Hand R1140ML1
