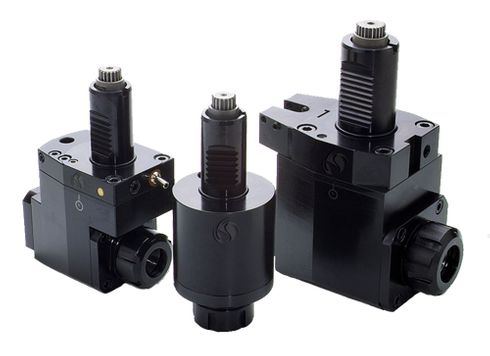

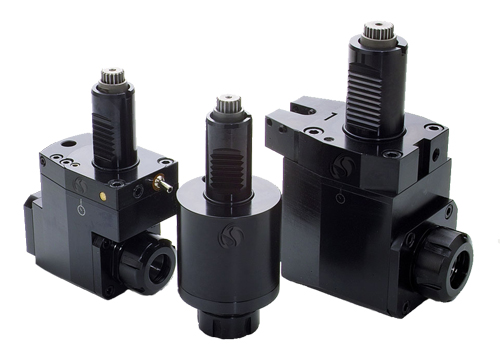

R12 VDI ER25 Live Toolholder Sauter Type DIN 5480 Radial RH Forward Head FR3054802585 R1230AR2

R12 VDI Live Toolholder Sauter Type Right Hand Radial Forward Head Collet DIN6499 FR3054802585 R1230AR2



AJAX INDUSTRIES, Your one stop SHOP for VDI LIVE TOOLING, Lathe Chucks and Jaws. Call one of our VDI Tooling Technicians Today. We Welcome the Opportunity to Quote and Help in selection of the proper VDI Static and Rotating Driven Live Tools to fit your CNC Turning, Milling, Drilling and Boring applications. Sauter, Duplomatic, Brauffaldi, Japanese, BMS, HAAS Tools and More for Mazak, Okuma, Haas, Daewoo, Mori Sieki, Doosan, Nakamura, Hwacheon ect... Put WORKHOLDING to work for YOU!!!

Ajaxtoolsupply.com GUARANTEED LOWEST PRICE!

Ajax Industries Sales and Service 1 (800) 543-5998

Description

R12 Radial 5480 Right D/M Forward Head (D=30, ER25)

R12 Radial Drilling & Milling Forward Head

Coupling to DIN5480 (Sauter Type)

Model# with "K": Internal Coolant (IC), "/2": Double

Torque (DT), "*2": Double Speed (DS)



Main Features

To be used for collet DIN6499

For endmilling, drilling, reaming

For clockwise and counter-clockwise rotation

External coolant supply

Collet is not included



Specifications

Part Number :FR3054802585

D DIN69880 30

X Capacity 1-16/ER25

S 42

Max rpm 5000

i 1:1

A 117

B 64

C 74.5

F 41

G 26

M 85

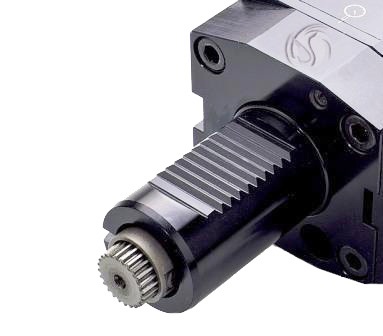

P DIN5480 W16X0.8

Old# Right-Hand R1230AR2

Old# Left-Hand R1230AL2
