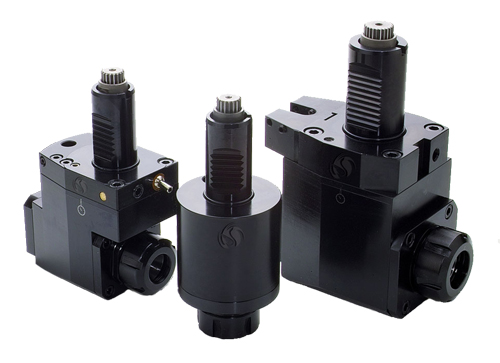

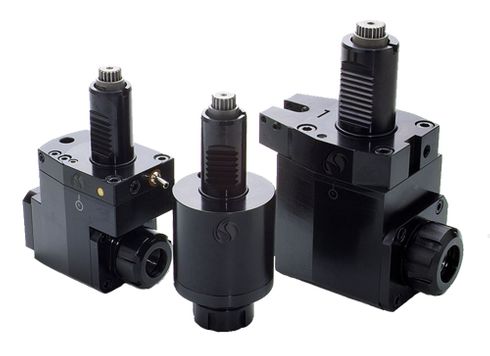

R12 VDI ER25 30mm LH Radial Forward Head Sauter Type DIN 5480 FL3054802585: R1230AL2

R12 VDI 30mm LH shank Driven Live Tooling Radial Drilling & Milling Forward Head Sauter Type FL3054802585: R1230AL2



AJAX INDUSTRIES, Your one stop SHOP for VDI LIVE TOOLING, Lathe Chucks and Jaws. Call one of our VDI Tooling Technicians Today. We Welcome the Opportunity to Quote and Help in selection of the proper VDI Static and Rotating Driven Live Tools to fit your CNC Turning, Milling, Drilling and Boring applications. Sauter, Duplomatic, Brauffaldi, Japanese, BMS, HAAS Tools and More for Mazak, Okuma, Haas, Daewoo, Mori Sieki, Doosan, Nakamura, Hwacheon ect... Put WORKHOLDING to work for YOU!!!

Ajaxtoolsupply.com GUARANTEED LOWEST PRICE!

Ajax Industries Sales and Service 1 (800) 543-5998

Description

R12 Radial 5480 Left D/M Forward Head (D=30, ER25)

R12 Radial Drilling & Milling Forward Head

Coupling to DIN5480 (Sauter Type)

Model# with "K": Internal Coolant (IC), "/2": Double

Torque (DT), "*2": Double Speed (DS)



Main Features

To be used for collet DIN6499

For endmilling, drilling, reaming

For clockwise and counter-clockwise rotation

External coolant supply



Specifications

Part Number :FL3054802585

D DIN69880 30

X Capacity 1-16/ER25

S 42

Max rpm 5000

i 1:1

A 117

B 64

C 74.5

F 41

G 26

M 85

P DIN5480 W16X0.8

Old# Right-Hand R1230AR2

Old# Left-Hand R1230AL2
