Product Description

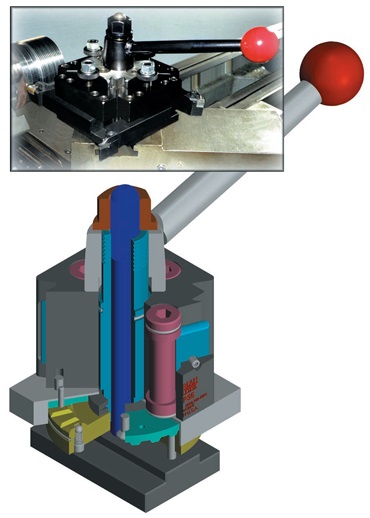

Quadra® Indexing Quick Change Tool Post
4 Tool Holders Lock Simultaneously
Indexing repeatability of .000005"
Toolholder locking repeatability of .0001"
Ideal for prototype or high production
Ideal for roughing and finishing
Indexes every 15°
Quick and Versatile for any operation
TECHNICAL SPECIFICATIONS:
Base Width 5.000
Bolt Hole Diameter 1.000
Brand Name Dorian
Centerline Height 2.995
Height 5.230
Series QITP50
Swing 17 to 32
Tool Holder Capacity 1-1/4 to 1-1/2
Actual Weight - 43.2500
