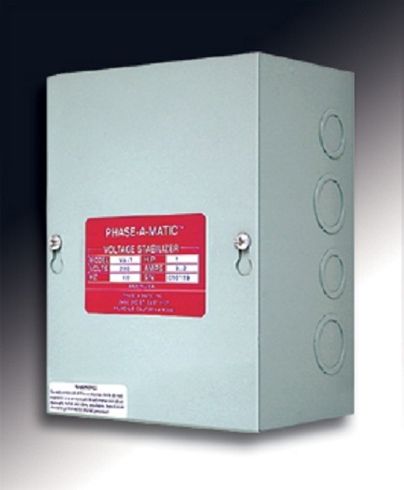

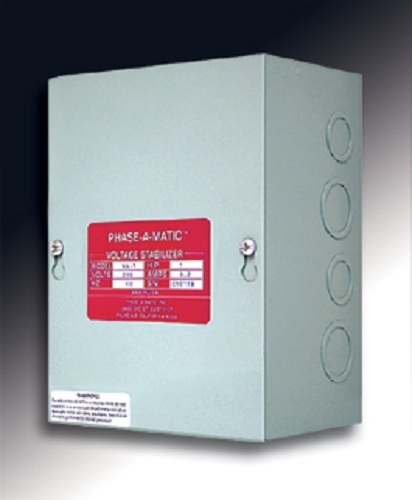

Phase-A-Matic 5 HP VS-5 Rotary Converter Voltage Stabilizer
For use with Rotary Converter for 3-phase electronic equipment such as CNC/PLC machines, AC/DC drives, and all voltage-sensitive equipment. Provides +/- 5% voltage stabilization.
The normal operating voltage of the Rotary Phase Converter is 208-230VAC on the 220V "R" series Rotary Converter, and 460VAC on the 460V "RH" series Rotary Converter. The generated phase output voltage of the Rotary Phase Converter is normally higher than the input voltage under no load and light load conditions. In applications with high single-phase voltage (greater than 230V on the 220V "R" series, and greater than 460V on the 460V "RH" series), the no load or light load output voltage may be excessive. Some CNC/PLC equipment will not work properly at the higher output voltage.
The Phase-A-Matic™ Voltage Stabilizer is designed to reduce this higher voltage to nearer the input voltage. It will also keep the output voltage stable during peak loads, thus helping CNC/PLC equipment and other voltage-sensitive equipment to operate properly.
