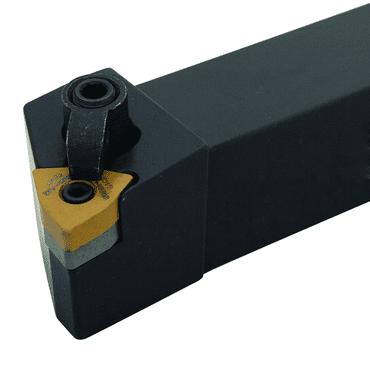

MWLNR12-4B 3/4 RH Shank WNMG Turning Toolholder

MWLNR12-4B 3/4 RH Shank WNMG Turning Toolholder



Negative 5° lead angle

Uses WNMG, WNMP or WNMA inserts

Specifications:

Clamp CL9

Clamp Screw XNS59

Head Length 1.250

Lead Angle 0

Lock Pin NL46

ANSI Standard MWLNR12-4B

Overall Length 4.50

Right/Left Hand Right

Seat IWSN432

Seat Screw S46

Shank Size .750

Uses Insert Style WNM_43_



Optional Spare Parts:

#IWSN432 For 1/2" IC - Shim Seat $10.40

#NL46 For 1/2" IC - 1/4-28 Thread - Lock Pin $6.05

#CL9 - 5/16-24 Thread - Clamp $8.25

#XNS59 - 5/16-24 Thread - Screw $2.80
