Product Description

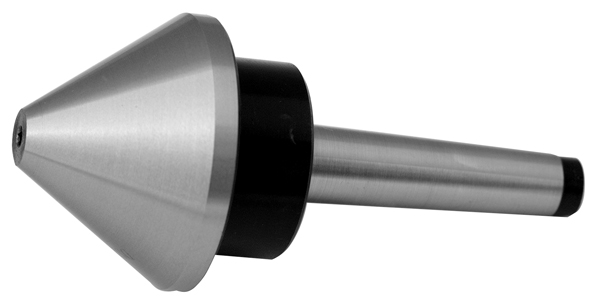

MT3-75 Degree 4" Bull Nose Live Center
Used for pipe and other hollow-shaped work machining.
Drawbar end is 3/8"-16.

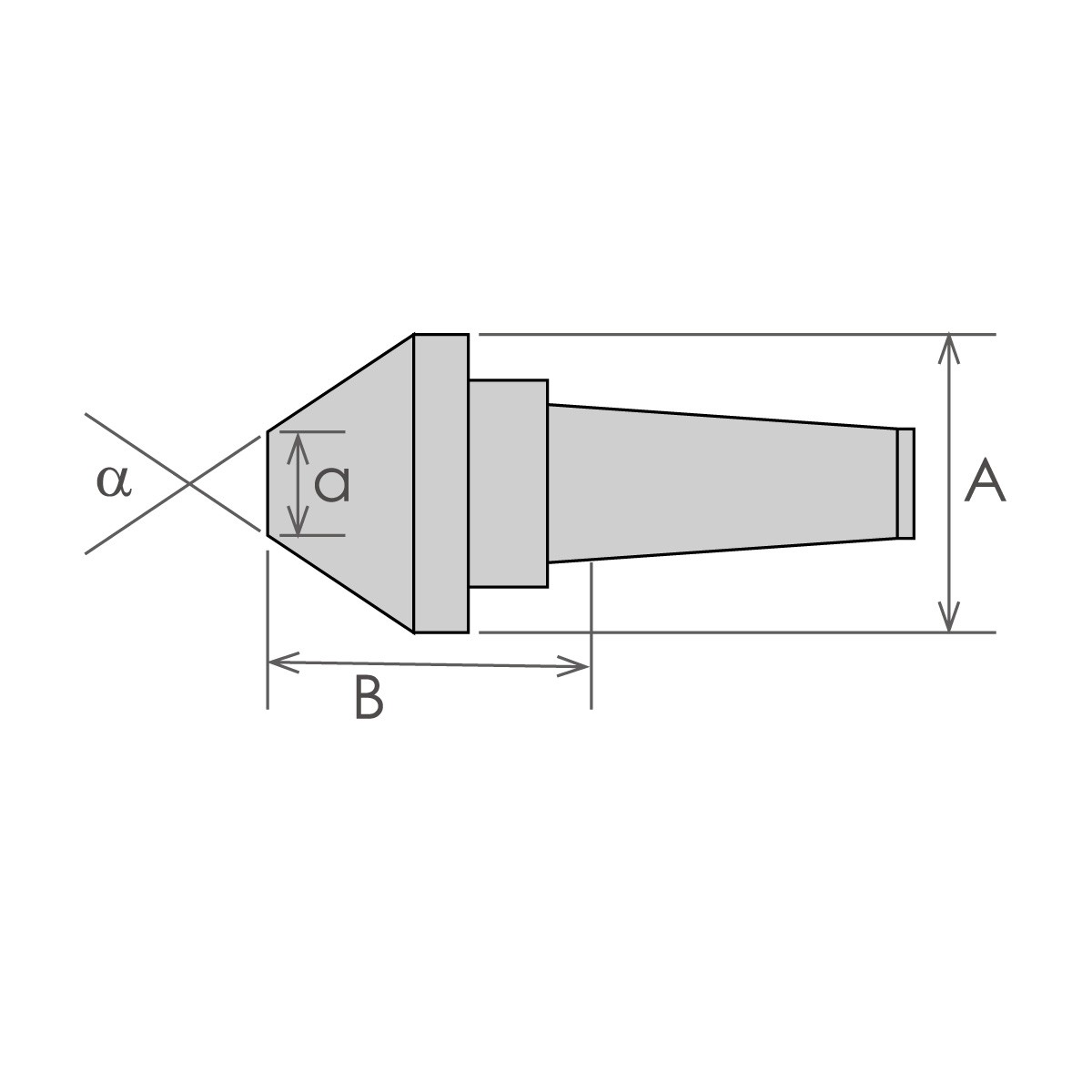

a is 1.26".
A is 3.94".
B is 3.27".
Overall length is 6.46".
Load rate is 1,323 lbs.
RPM is 3,000.
T.I.R. is 0.00039/0.01.
Shipping Weight: 5.3 lbs
Used for pipe and other hollow-shaped work machining.
Drawbar end is 3/8"-16.
a is 1.26".
A is 3.94".
B is 3.27".
Overall length is 6.46".
Load rate is 1,323 lbs.
RPM is 3,000.
T.I.R. is 0.00039/0.01.
Shipping Weight: 5.3 lbs
