MT5 SUPER-DUTY HIGH PERFORMANCE LIVE CENTER

Features


Combination of needle roller, thrust ball and deep groove ball bearings.
Central spindle is made of hardened alloy steel and ground.
Oil filler in the head for maintain the internal bearings to extend the life time.

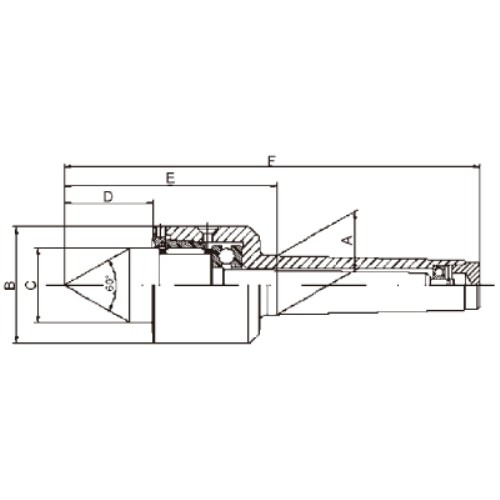

Product Specifications


Morse Taper 5
A 44.40 mm
B 70
C 45
D 51
E 134.5
F 246
Load Rate lbs. 4400
Max. RPM 3000
