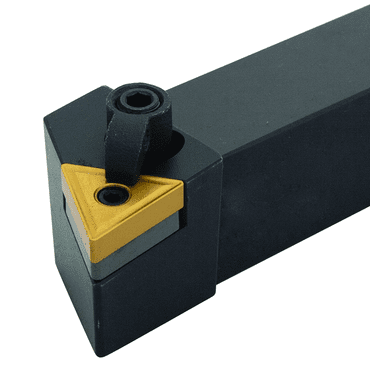

MTJNR16-4D 1" RH Shank TNMG Turning Toolholder

MTJNR16-4D 1" RH Shank TNMG Turning Toolholder



For turning and profiling

Negative 3Degree lead angle

Uses TNMA, TNMG, TNMP, TNGA, TNMM, TNG or TNU inserts

Right hand



Specifications:



Clamp CL9

Clamp Screw XNS510

Head Length 1.250

IC 1/2

Lead Angle 3degree

Lock Pin NL46

ANSI Standard MTJNR16-4D

Overall Length 6.00

Right/Left Hand Right

Seat ITSN433

Seat Screw S46

Shank Size 1.000

Uses Insert Style TNM_43_



Optional Spare Parts:



#ITSN432 For 1/2" IC - Shim Seat $9.40

#ITSN433 For 1/2" IC - Shim Seat $9.40

#NL46 For 1/2" IC - 1/4-28 Thread - Lock Pin $6.05

#CL9 - 5/16-24 Thread - Clamp $8.25

#XNS510 - 5/16-24 Thread - Screw $2.80

#S46 - 1/4-28 Thread - Shim Screw $2.90
