Product Description
◾Jeweled bearings
◾Reversible contact point
◾Two holding bars are supplied. One (1/2" 1/4") is used with lathe tool posts and height gages, the other (.315" dia.) with drill chucks.
◾Fully adjustable bezel/dial face
◾Contact point is adjustable within 220°

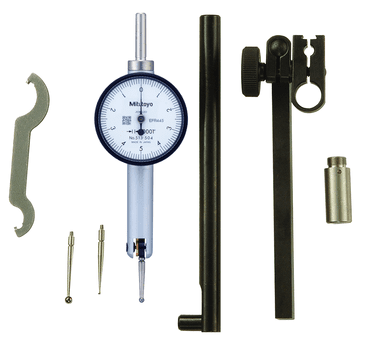

◾Complete with accessories and compact carrying case
Brand Name Mitutoyo
Comments Set includes: Stem (102081), and Point (103011) already installed.;Plus bars (900306) and (900211) and clamp (900291).
Dial Reading 0-50-0
Graduation .0001
Indicator Style Horizontal
Model Number 513-504T
Total Range .010
Type Dial Test Indicator Kit
◾Reversible contact point
◾Two holding bars are supplied. One (1/2" 1/4") is used with lathe tool posts and height gages, the other (.315" dia.) with drill chucks.
◾Fully adjustable bezel/dial face
◾Contact point is adjustable within 220°
◾Complete with accessories and compact carrying case
Brand Name Mitutoyo
Comments Set includes: Stem (102081), and Point (103011) already installed.;Plus bars (900306) and (900211) and clamp (900291).
Dial Reading 0-50-0
Graduation .0001
Indicator Style Horizontal
Model Number 513-504T
Total Range .010
Type Dial Test Indicator Kit
