Product Description

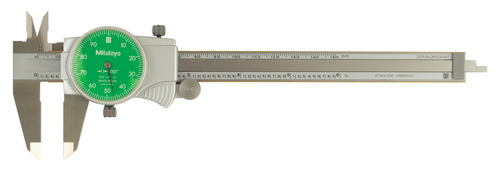

Mitutoyo 0-6 Dial Caliper Green Face .001 Graduation 505-675-53
Dial Calipers - Series 505
Series 505
Features
New designed dial movement for ultra smooth sliding and high shock protection.
Titanium Nitride (TiN) coating is applied to the sliding surface to increase wear resistance(except for 0-300mm and 0-12" model).
Can measure OD, ID, depth, and steps. Lock screw for dial bezel and for holding the slding jaw position .

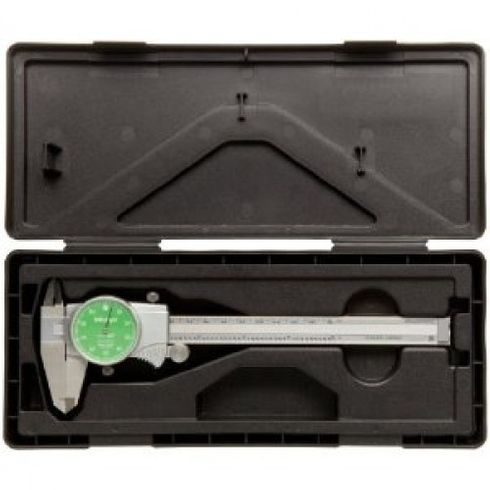

Models available with carbide-tipped OD and ID jaws. Supplied in fitted plastic case.
Specifications
Maximum Measurement (Inch) 6
Minimum Measurement (Decimal Inch) 0.0000
Dial Graduation (Decimal Inch) 0.001000
Range Per Revolution (Decimal Inch) 0.1000
Dial Face Color Green
Jaw Length (Inch) 1-9/16
Includes Inside Diameter Jaws
Applications: Depth, Inside Diameter, Outside Diameter, Step
Accuracy (Decimal Inch) 0.0010
Includes Depth Measurement Rod
Material Stainless Steel
Jaw Material Stainless Steel
Finish/Coating TiN
Dial Case Color Gray
