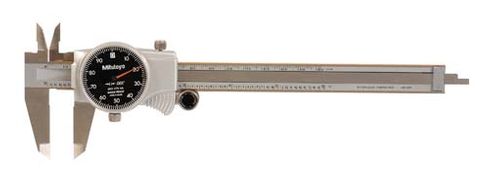

Mitutoyo 0 - 6" Dial Calipers Black Face 505-675-66
Dial Calipers - Series 505
New designed dial movement for ultra smooth sliding and high shock protection.
Titanium Nitride (TiN) coating is applied to the sliding surface to increase wear resistance(except for 0-300mm and 0-12" model).
Can measure OD, ID, depth, and steps. Lock screw for dial bezel and for holding the slding jaw position.
Maximum Measurement (Inch) 6
Minimum Measurement (Decimal Inch) 0.0000
Minimum Measurement (mm) 0.00
Dial Graduation (Decimal Inch) 0.001000
Range Per Revolution (Decimal Inch) 0.1000
Dial Face Color Black
Jaw Length (Inch) 1-9/16
Includes Inside Diameter Jaws
Applications: Depth, Inside Diameter, Outside Diameter, Step
Accuracy (Decimal Inch) 0.0010
Includes Depth Measurement Rod
Material Stainless Steel
Jaw Material Stainless Steel
Dial Case Color Gray
