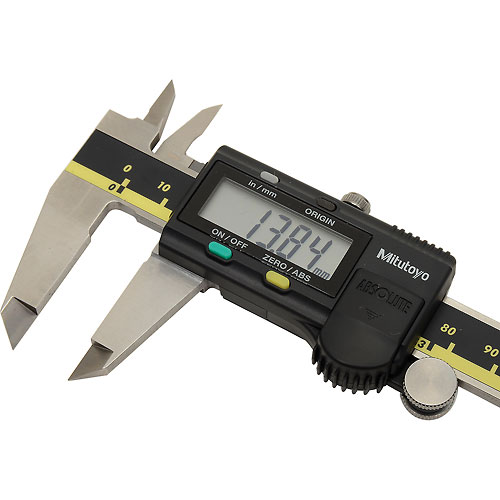

Product Description
Large and clear LCD readout
The ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for incremental comparison measurements.
This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point
Both an LCD display and an imprinted line scale
Smaller models offer a convenient thumb wheel
Stainless steel construction
Linear scale embedded in epoxy
Inside, outside, depth and step measurements
Absolute scale
Repeatability: .0005"
LCD 5-digit display
Response speed: unlimited
Control switch: on/zero off, inch/metric, data/hold
TECHNICAL SPECIFICATIONS
Accuracy ±.001"
Brand Name Mitutoyo
Comments Without Output
Jaw Depth 1.97
Measuring Range 0 - 6 / 0 - 150mm
Model Number 500-196-30
Nib Depth Standard
Resolution .0005" / 0.01mm
Type Electronic Caliper
