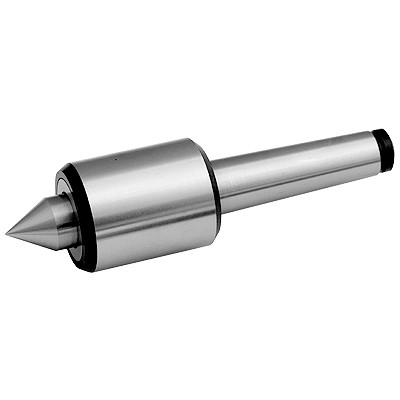

Product Description
Features
With 60° included angle.
Made of hardened steel and ground to high accuracy.
The central spindle lengthened to reduce vibration.
Two special designed high-quality ball bearing and thrust bearings.
Complete protection of bearings from the ingress of coolant, dirt or swart.
Slim body design.
CONCENTRICITY WITHIN .0002"
Product Specifications
Morse Taper 2
a 0.86
A 1.65
B 1.12
C 1.92
OAL 5.70
Load Rate lbs. 330
Max. RPM 3500
With 60° included angle.
Made of hardened steel and ground to high accuracy.
The central spindle lengthened to reduce vibration.
Two special designed high-quality ball bearing and thrust bearings.
Complete protection of bearings from the ingress of coolant, dirt or swart.
Slim body design.
CONCENTRICITY WITHIN .0002"
