Product Description

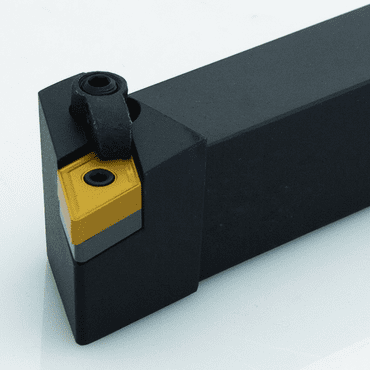

MDJNR16-4D 1" RH Shank DNMG Turning Tool Holder & 10 Inserts
Kit comes complete with (1) tool holder and (10) PVD TiAlN coated inserts
Inserts are grade 425 and work with steel, stainless steel, cast iron and hi-temp alloys
Technical Specifications
Uses Insert DNMG 432
Overall Length 6.00
Holder MDJNR16-4D
Shank Size 1.00
MDJNR16-4D 1" Shank DNMG Turning Toolholder
For turning and profiling
Negative 3° lead angle
Uses DNMG, DNMA, DNMP, DNGA or DNMM 55° diamond inserts
Specifications:
Clamp CL20
Clamp Screw XNS48
Head Length 1.250
IC 1/2
Lead Angle 3°
Lock Pin NL46
ANSI Standard MDJNR16-4D
Overall Length 6.00
Right/Left Hand Right
Seat IDSN433
Seat Screw S46
Shank Size 1.000
Uses Insert Style DNM_43_
Optional Spare Prats:
#IDSN433 For 1/2" IC - Shim Seat $6.65
#NL46 For 1/2" IC - 1/4-28 Thread - Lock Pin $6.05
#CL7 - 10-32 Thread - Clamp $8.10
#CL20 - 1/4-28 Thread - Clamp $9.15
#XNS36 - 10-32 Thread - Screw $2.80
#XNS48 - 1/4-28 Thread - Screw $2.80
#S46 - 1/4-28 Thread - Shim Screw $2.80
Kit comes complete with (1) tool holder and (10) PVD TiAlN coated inserts
Inserts are grade 425 and work with steel, stainless steel, cast iron and hi-temp alloys
Technical Specifications
Uses Insert DNMG 432
Overall Length 6.00
Holder MDJNR16-4D
Shank Size 1.00
MDJNR16-4D 1" Shank DNMG Turning Toolholder
For turning and profiling
Negative 3° lead angle
Uses DNMG, DNMA, DNMP, DNGA or DNMM 55° diamond inserts
Specifications:
Clamp CL20
Clamp Screw XNS48
Head Length 1.250
IC 1/2
Lead Angle 3°
Lock Pin NL46
ANSI Standard MDJNR16-4D
Overall Length 6.00
Right/Left Hand Right
Seat IDSN433
Seat Screw S46
Shank Size 1.000
Uses Insert Style DNM_43_
Optional Spare Prats:
#IDSN433 For 1/2" IC - Shim Seat $6.65
#NL46 For 1/2" IC - 1/4-28 Thread - Lock Pin $6.05
#CL7 - 10-32 Thread - Clamp $8.10
#CL20 - 1/4-28 Thread - Clamp $9.15
#XNS36 - 10-32 Thread - Screw $2.80
#XNS48 - 1/4-28 Thread - Screw $2.80
#S46 - 1/4-28 Thread - Shim Screw $2.80
