Product Description

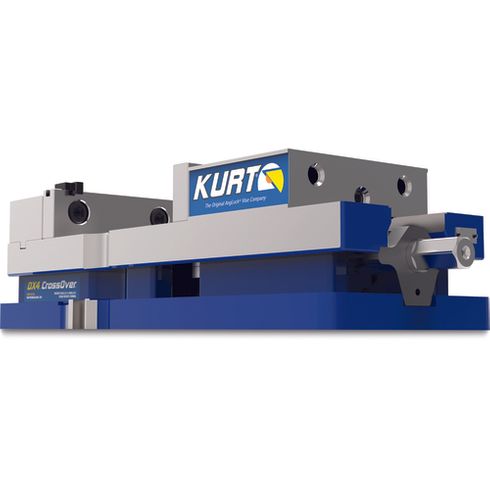

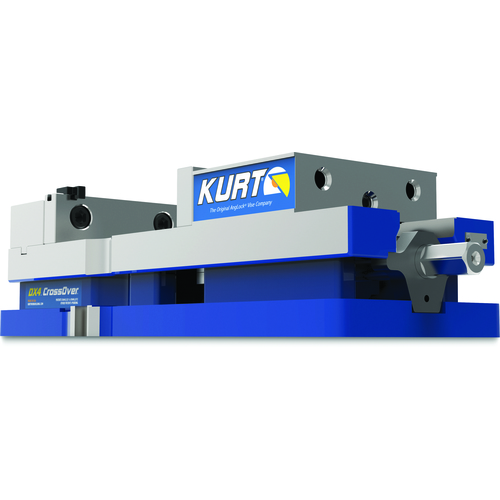

KURT 4" Anglock Vise Part No. DX4
The DX4 vise is recommended for intermediate milling and grinding work.
It is an ideal vise used in matched multiples when holding long parts.
With jaw plates in their outside positions, this 4 inch vise has a capacity of 10-5/16 inches.
Features
•Patented AngLock® design does away with movement or tilt of the movable jaw while it is clamped.
•Clamping in 4 positions.
•Flame hardened vise bed.
•Hardened and ground jaw plates.
•Needle bearing increases jaw clamping pressure.
•Multi-directional alignment means the movable jaw and workpiece won't tilt while you work.
Specifications
Jaw Width (Inch) 4 Jaw
Width (Decimal Inch) 4.0000
Jaw Opening Capacity (Inch) 6.5
Throat Depth (Decimal Inch) 1.1150
Jaw Height (Inch) 1-1/8
Base Length (Decimal Inch) 12.3400
Base Height (Decimal Inch) 2.2500
Maximum Clamping Force (psi) 80000.00
Overall Height (Decimal Inch) 3.4850
Weight 32 Lbs
