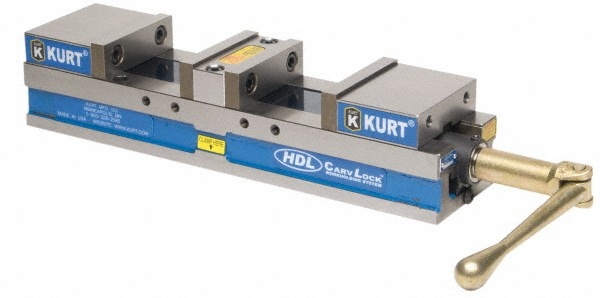

KURT 6" Vise with Hard Jaw Kit HDL6J
Product Description
KURT 6" Vise with Hard Jaw Kit HDL6J
The manually actuated HDL Anglock® Vises are high density long vises with two clamping stations .
They provide repeatable clamping to 0.0002 inch.
They combine high density with heavy duty features.
Designed on a rugged 80,000 PSI ductile iron body with steel components, both models provide strength, rigidity and long term accuracy while absorbing machining vibration.
The HDL6J is a 6 inch wide High Density double station vise.
This vise features quick change standard Kurt hard jaws with English fasteners.
Specs:
Jaw Width (Inch): 6
Jaw Opening Capacity (Inch): 4
Throat Depth (Decimal Inch): 1.7280
Base Width (Decimal Inch) 6.0000
Load Capacity (Lb.) 7460.00
Base Height (Decimal Inch) 3.1250
Overall Height (Decimal Inch) 4.8530
Weight 71 Lbs
The manually actuated HDL Anglock® Vises are high density long vises with two clamping stations .
They provide repeatable clamping to 0.0002 inch.
They combine high density with heavy duty features.
Designed on a rugged 80,000 PSI ductile iron body with steel components, both models provide strength, rigidity and long term accuracy while absorbing machining vibration.
The HDL6J is a 6 inch wide High Density double station vise.
This vise features quick change standard Kurt hard jaws with English fasteners.
Specs:
Jaw Width (Inch): 6
Jaw Opening Capacity (Inch): 4
Throat Depth (Decimal Inch): 1.7280
Base Width (Decimal Inch) 6.0000
Load Capacity (Lb.) 7460.00
Base Height (Decimal Inch) 3.1250
Overall Height (Decimal Inch) 4.8530
Weight 71 Lbs
