Product Description

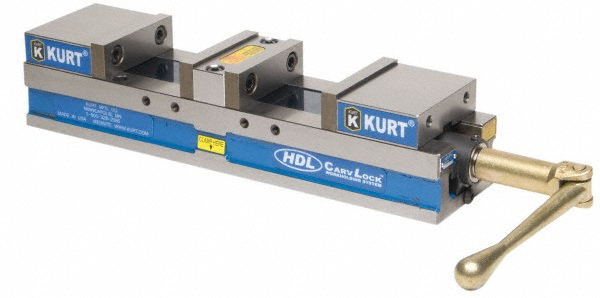

Kurt 4" Vise with Hard Jaw Kit HDL4J
The HDL4J is a 4 inch wide High Density double station vise. This vise features quick change standard Kurt hard jaws with English fasteners.
The manually actuated HDL Anglock® Vises are high density long vises with two clamping stations . They provide repeatable clamping to 0.0002 inch. They combine high density with heavy duty features. Designed on a rugged 80,000 PSI ductile iron body with steel components, both models provide strength, rigidity and long term accuracy while absorbing machining vibration
Jaw Width (Inch) 4
Jaw Opening Capacity (Inch) 2-63/64
Jaw Opening Capacity (Decimal Inch) 2.9844
Throat Depth (Decimal Inch) 1.4000
Overall Length (Decimal Inch) 17.7000
Base Width (Decimal Inch) 4.0000
Jaw Height (Decimal Inch) 1.4000
Base Length (Decimal Inch) 16.3750
Load Capacity (Lb.) 5870.00
Base Height (Decimal Inch) 2.3750
Overall Height (Decimal Inch) 3.7750
Weight 34 Lbs
The HDL4J is a 4 inch wide High Density double station vise. This vise features quick change standard Kurt hard jaws with English fasteners.
The manually actuated HDL Anglock® Vises are high density long vises with two clamping stations . They provide repeatable clamping to 0.0002 inch. They combine high density with heavy duty features. Designed on a rugged 80,000 PSI ductile iron body with steel components, both models provide strength, rigidity and long term accuracy while absorbing machining vibration
Jaw Width (Inch) 4
Jaw Opening Capacity (Inch) 2-63/64
Jaw Opening Capacity (Decimal Inch) 2.9844
Throat Depth (Decimal Inch) 1.4000
Overall Length (Decimal Inch) 17.7000
Base Width (Decimal Inch) 4.0000
Jaw Height (Decimal Inch) 1.4000
Base Length (Decimal Inch) 16.3750
Load Capacity (Lb.) 5870.00
Base Height (Decimal Inch) 2.3750
Overall Height (Decimal Inch) 3.7750
Weight 34 Lbs
