Product Description

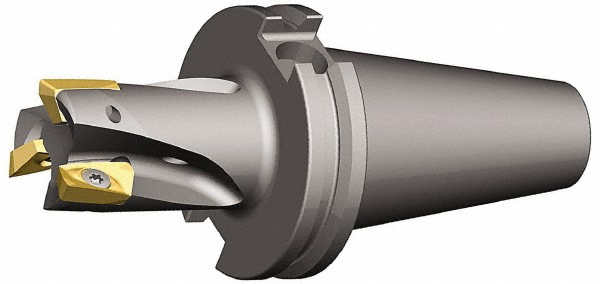

Indexable Square-Shoulder Face Mills; Cutting Diameter (Inch): 2; Cutting Diameter (Decimal Inch): 2.0000; Maximum Depth of Cut (Decimal Inch): 0.5600; Lead Angle ( ): 0/90; Arbor Hole Diameter (Inch): 3/4; Arbor Hole Diameter (Decimal Inch): 0.7500
Cutting Diameter (Inch) 2 Cutting Diameter (Decimal Inch) 2.0000 Maximum Depth of Cut (Decimal Inch) 0.5600 Lead Angle ( ) 0/90 Arbor Hole Diameter (Inch) 3/4 Arbor Hole Diameter (Decimal Inch) 0.7500 Overall Height (Decimal Inch) 1.5750 Number of Cutter Inserts 5 Insert Compatibility EC14.., EP14.. Series Mill 1-14 Cutter Style Mill 1 Insert Holding Method Screw Maximum RPM 24700 Number of Flutes 5 Through Coolant (Yes/No) No
