Product Description

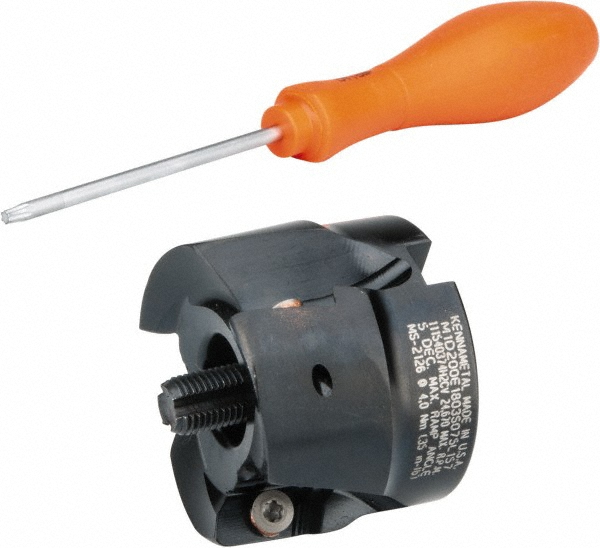

Indexable Square-Shoulder Face Mills; Cutting Diameter (mm): 50.80; Cutting Diameter (Inch): 2; Cutting Diameter (Decimal Inch): 2.0000; Maximum Depth of Cut (mm): 18.03; Maximum Depth of Cut (Decimal Inch): 0.7100; Lead Angle ( ): 0/90
Cutting Diameter (mm) 50.80 Cutting Diameter (Inch) 2 Cutting Diameter (Decimal Inch) 2.0000 Maximum Depth of Cut (mm) 18.03 Maximum Depth of Cut (Decimal Inch) 0.7100 Lead Angle ( ) 0/90 Arbor Hole Diameter (mm) 19.05 Arbor Hole Diameter (Inch) 3/4 Arbor Hole Diameter (Decimal Inch) 0.7500 Overall Height (mm) 40.01 Overall Height (Decimal Inch) 1.5750 Number of Cutter Inserts 3 Insert Compatibility EC18.., EP18.. Series Mill 1-18 Cutting Direction Right Hand Insert Holding Method Screw Maximum RPM 24670 Number of Flutes 3 Hub Diameter (mm) 42.88 Hub Diameter (Decimal Inch) 1.6882 Keyway Width (mm) 8.41 Keyway Width (Decimal Inch) 0.3311 Maximum Body Diameter (Decimal Inch) 1.9340 Through Coolant (Yes/No) Yes Coolant Hole Diameter (Decimal Inch) 3.0000
