Product Description

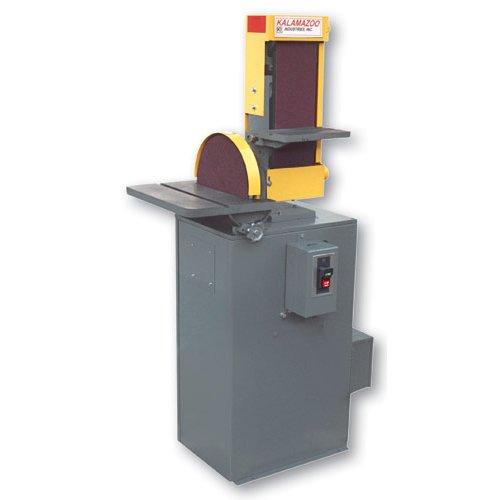

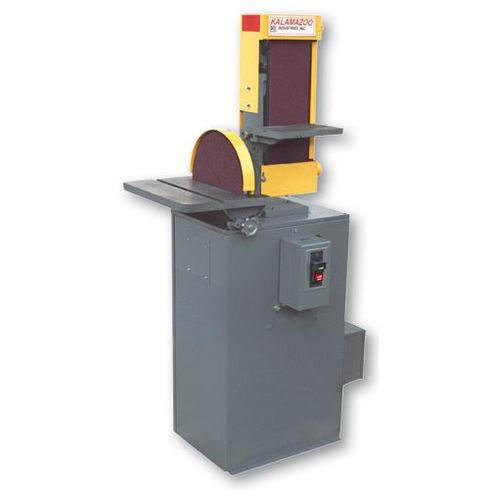

S612, S612V Combination Sander, With or without integral Vacuum Base. Powerful! 3 hp! This is an industrial unit for production!
S612 or S612V combination belt and disc sander has applications in the following industries: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Automotive, Metal Foundries, as well as many other Manufacturing and Fabrication environments.
The belt sanding head can be positioned either in a vertical or horizontal position.
Multiple grits of sanding disc’s or belts can be used.
Available with OR without integral vacuum base dust collector. 3HP 1PH 220 OR 3HP 3PH 220/440 volt.
Magnetic switch with overload protection.
Built in 100 CFM dust collector base with cartridge filter on S612V vacuum base unit.
Quick change belt, pre-tensioned one lever belt change…FAST !!
Dimensions: L12″ x W14″ x H60″
Weight: 500 lbs.
**Specifications**
Made in USA !!!
Belt Sander multi-position horizontal/vertical
Work Table- Cast iron 6″ x 10″ with 1/2″ x 1/8″ slot
Platen- Steel 6-1/2″ x 14″
Belt- 6″ x 48″ – 2800 SFPM
Disc- 12″ aluminum disc, 5/8″ arbor
Speed- 2500 SFPM Work table
Cast Iron 8″ x 14″
S612 or S612V combination belt and disc sander has applications in the following industries: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Automotive, Metal Foundries, as well as many other Manufacturing and Fabrication environments.
The belt sanding head can be positioned either in a vertical or horizontal position.
Multiple grits of sanding disc’s or belts can be used.
Available with OR without integral vacuum base dust collector. 3HP 1PH 220 OR 3HP 3PH 220/440 volt.
Magnetic switch with overload protection.
Built in 100 CFM dust collector base with cartridge filter on S612V vacuum base unit.
Quick change belt, pre-tensioned one lever belt change…FAST !!
Dimensions: L12″ x W14″ x H60″
Weight: 500 lbs.
**Specifications**
Made in USA !!!
Belt Sander multi-position horizontal/vertical
Work Table- Cast iron 6″ x 10″ with 1/2″ x 1/8″ slot
Platen- Steel 6-1/2″ x 14″
Belt- 6″ x 48″ – 2800 SFPM
Disc- 12″ aluminum disc, 5/8″ arbor
Speed- 2500 SFPM Work table
Cast Iron 8″ x 14″
