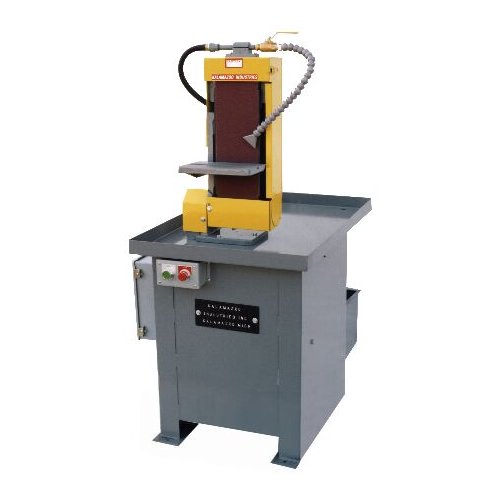

S6MW is a vertical/horizontal 6″wet Belt Sander. This unit comes with a 3HP 1, 220V or 3PH, 220V or 440V (specify voltage at time of order) motor.
Great for material sampling in metallurgical labs.
S6MW wet belt sander has applications in the following industries: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Automotive, Metal Foundries, as well as many other Manufacturing and Fabrication environments.
6″ x 48″ Wet belt sander, 3 hp, 1 ph/220 or 3 ph/220/440 motor, Also available in 50 hz, 575 volt too!
Magnetic switch with 24 volt at push button
3450 rpm motor w/ 2800 SFPM at belt.
Steel reversible platen 6 1/2″ x 14″
Multi-position vertical thru horizontal, cast iron frame.
Cast Iron work table, 6″ x 10″ w/1/2″ x 1/8″ slot
1 lever quick belt change, pre-set spring belt tension.
Full OSHA guard, heavy duty base
1/3 hp coolant pump & 10 gal. tank w/ baffles.
Model: S6MW-1, 3 hp , 1 phase, 220 volt. WT: 475 lbs.
Model: S6MW-3, 3 hp , 3 phase, 220 or 440 volt Wt: 475 lbs.
